Description

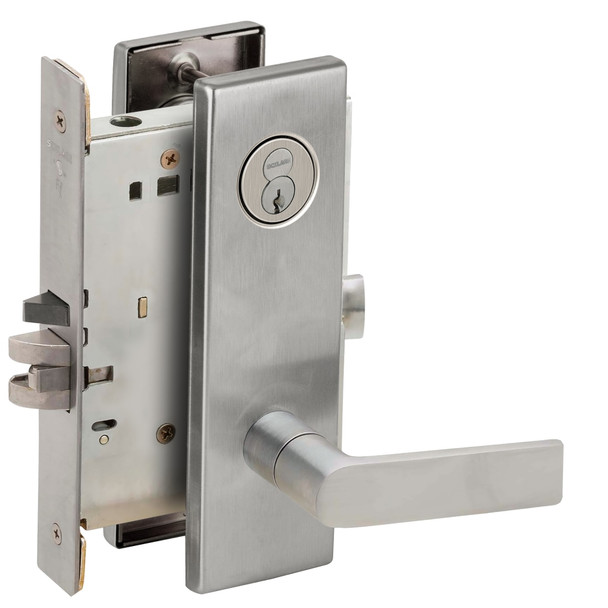

The Schlage L9076R is an extra heavy-duty mortise lock built for high-traffic commercial environments including schools, hospitals, and factories. Its ANSI Grade 1-rated construction and fully wrapped steel case withstand constant use and abuse while maintaining reliable security and operation for demanding applications.
This universal lock case accommodates ten functions in one housing and features field-reversible handing without opening the lock. Compatible with standard mortise preparations, it installs with thru-bolted trim and includes a break-away spindle for security and easy replacement. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on function selection, finish options, and keying specifications.
Specifications
- ANSI Grade 1 rated
- Heavy-gauge, fully wrapped steel case
- Zinc dichromate-plated working parts
- Two-piece anti-friction tongue
- Break-away spindle with hub blocking plate
- Spring-loaded fusible link for fail-secure fire mode
- Screwless shank mounting
- Universal case with ten available functions
- Floating mounting tabs for beveled doors
- Field-reversible handing
- External spring cages for trim retrofit
- Locking thumb-turn inside lever
