Description

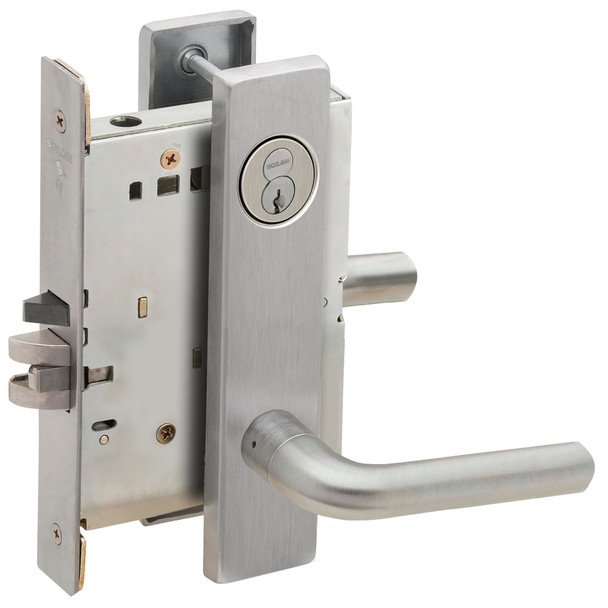

The Schlage L9076R 02L 626 is an extra heavy-duty mortise lock built for high-traffic institutional environments like schools, hospitals, and factories. It meets ANSI Grade 1 standards and features a heavy-gauge steel case, zinc dichromate-plated components, and anti-friction design to deliver consistent, dependable operation under constant use without fail.
This mortise lock offers universal compatibility with ten functions in one case, field-reversible handing, and adjustable floating tabs for beveled doors. Compatible with standard mortise lock applications; installation requires proper door preparation. As an authorized Schlage dealer, E.D. Locks provides expert support at sales@edlocks.com or 1-877-207-6067 to help you select the correct function and finish for your project.
Specifications
- Brand: Schlage
- Model: L9076R 02L 626
- Type: Mortise Lock
- Duty Rating: Extra Heavy Duty
- Security Standard: ANSI Grade 1
- Case Material: Heavy-gauge steel with full wrap
- Plating: Zinc dichromate on working parts
- Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure), locking thumb-turn, lever rotation in both directions, independent lever rotation, field-reversible handing, adjustable floating tabs
- Functions Available: Ten functions in one case
