Description

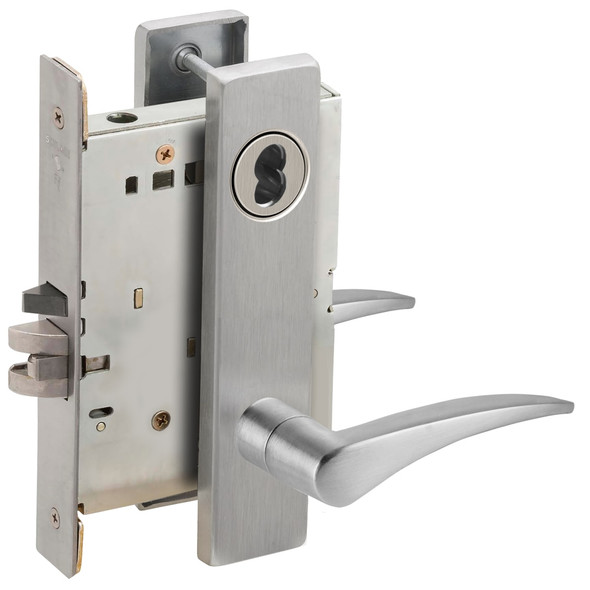

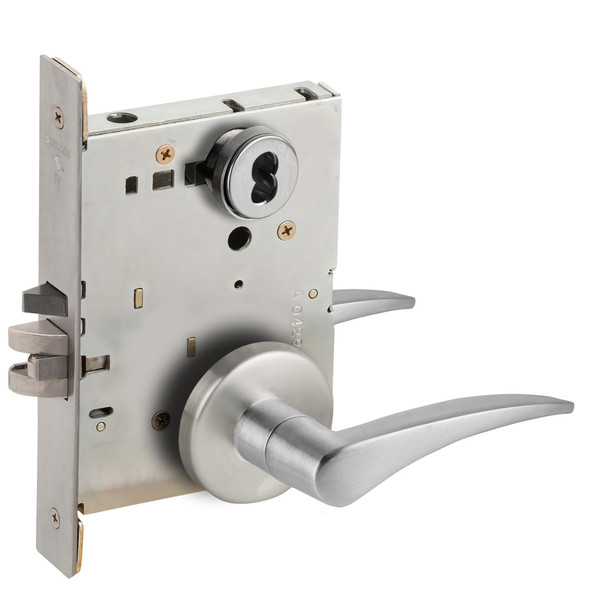

The Schlage L9080B is an extra heavy-duty mortise lock built for high-traffic commercial environments including schools, hospitals, and factories. It delivers ANSI Grade 1 security with a fully wrapped steel case, zinc-plated components, and anti-friction design that resists wear from constant use and abuse.
This left-hand model features ten functions in one universal case, field-reversible handing, and fail-secure capability via spring-loaded fusible link. Compatible with standard mortise lock installations; trim retrofit is simple with external spring cages. For expert specification assistance or keying questions, contact E.D. Locks at sales@edlocks.com or 1-877-207-6067.
Specifications
- Model: L9080B 12L 630 LH
- Brand: Schlage
- Lock Type: Mortise
- Grade: ANSI Grade 1
- Handing: Left Hand (LH)
- Case Material: Heavy-gauge wrapped steel
- Working Parts: Zinc dichromate-plated
- Functions: Ten in one case
- Security Feature: Break-away spindle, hub blocking plate
- Fire Safety: Spring-loaded fusible link (fail-secure)
- Installation: Field-reversible, universal case, floating mounting tabs
