Description

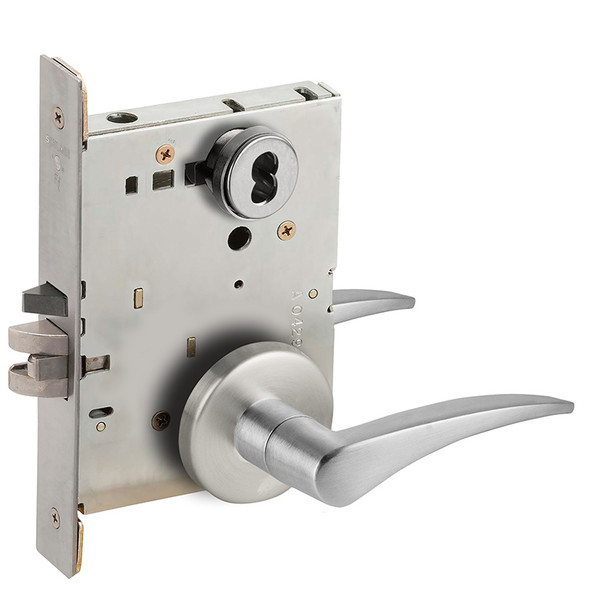

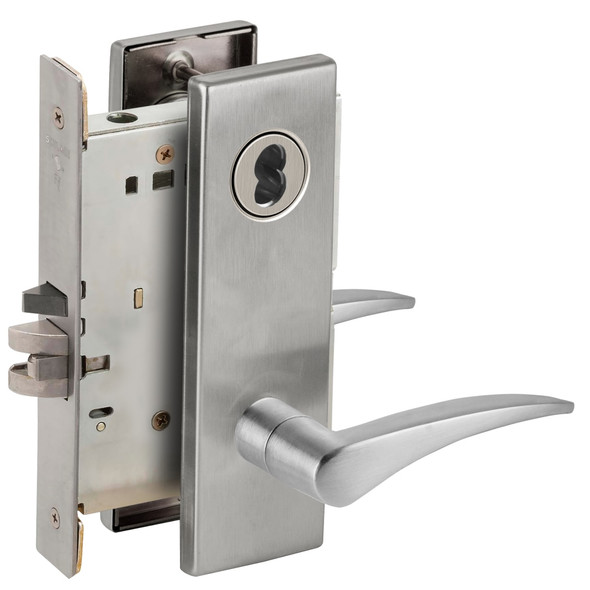

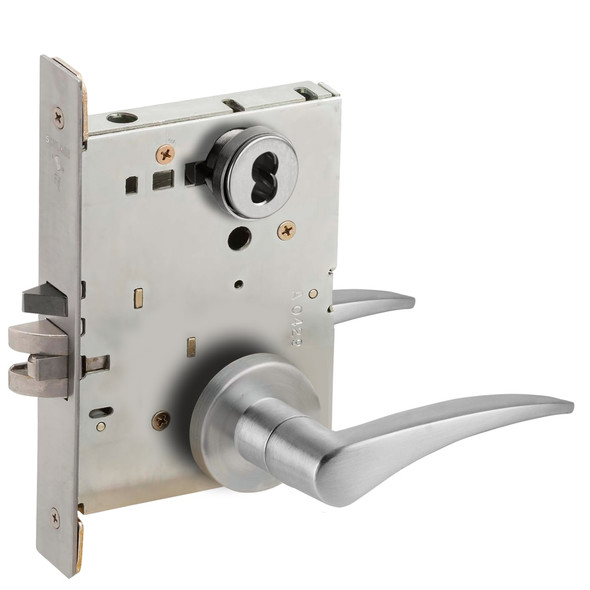

The Schlage L9080J HSLR 630 RH is an extra heavy-duty mortise lock engineered for high-traffic commercial environments including schools, hospitals, and factories. This ANSI Grade 1 certified lock delivers dependable security and consistent operation under constant use, with a heavy-gauge steel case and all-metal zinc dichromate-plated components that resist wear, tampering, and door edge attacks.
The L9080J features a universal lock case with ten functions in one housing, field-reversible handing without opening the case, and a break-away spindle for security and easy replacement. It is compatible with standard commercial doors and accepts Schlage interchangeable cores. For proper installation, keying options, and finish selection, contact our authorized dealer specialists at sales@edlocks.com or 1-877-207-6067 for expert guidance.
Specifications
- Series: Schlage L9000 Extra Heavy Duty
- Model: L9080J HSLR 630 RH
- Security Rating: ANSI Grade 1
- Case: Heavy-gauge, fully wrapped steel
- Working Parts: All-metal, zinc dichromate-plated
- Anti-Friction: Two-piece tongue design
- Handing: Field-reversible RH (Right Hand)
- Function: Universal lock case, ten functions available
- Fire Safety: Spring-loaded fusible link, fail secure mode
- Trim Mounting: Thru-bolted, no exposed screws
- Door Fit: Floating mounting tabs for beveled edges
