Description

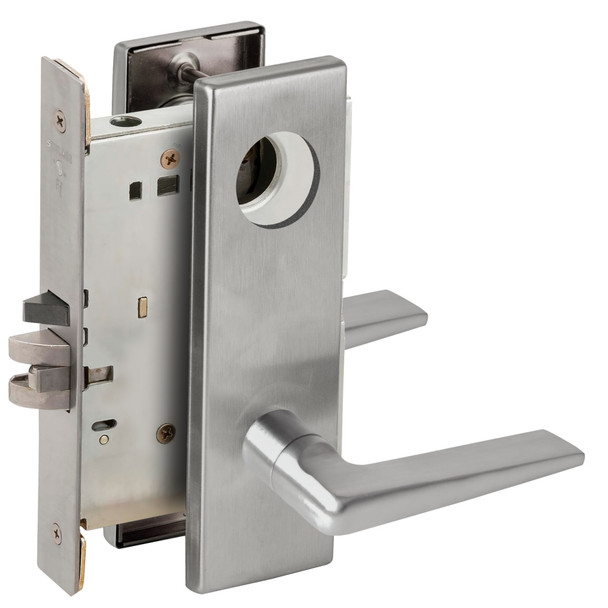

The Schlage L9080L is an extra-heavy-duty mortise lock engineered for high-traffic commercial environments like schools, hospitals, and factories. Built to ANSI Grade 1 standards, this lock features a fully wrapped steel case, zinc dichromate-plated components, and anti-friction design that withstands constant use and abuse while maintaining dependable operation.
The L9080L offers ten functions in a universal case, field-reversible handing, and fail-secure fire protection via spring-loaded fusible link. Compatible with standard mortise installations on beveled or flush doors. As an authorized Schlage dealer, E.D. Locks provides expert guidance on handing, keying, and specification matching. Contact sales@edlocks.com or call 1-877-207-6067 for technical support and fast delivery.
Specifications
- Model: L9080L 05N 630
- Brand: Schlage
- Type: Mortise Lock, Extra Heavy Duty
- Grade: ANSI Grade 1
- Finish: Satin Stainless Steel (630)
- Case Material: Heavy-gauge fully wrapped steel
- Working Parts: Zinc dichromate-plated all-metal
- Functions: 10 in one case
- Handing: Field-reversible without opening case
- Fire Protection: Spring-loaded fusible link, fail-secure
- Security Features: Break-away spindle, hub blocking plate, two-piece anti-friction tongue
- Installation: Thru-bolted trim through door, universal floating mounting tabs for beveled edges
