Description

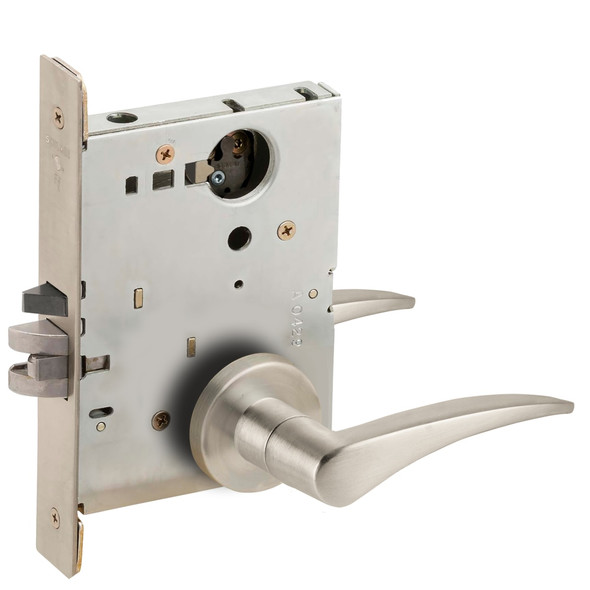

The Schlage L9080L is an extra-heavy-duty mortise lock built for high-traffic commercial environments like schools, hospitals, and factories. Its Grade 1 rated construction withstands constant use and abuse, with a fully wrapped steel case, all-metal zinc-plated components, and a break-away spindle that prevents unsecured failures and enables easy maintenance.
This right-hand lock is field-reversible and compatible with standard mortise prep doors. It features ten functions in one universal case, external spring cages for simple trim retrofit, and adjustable floating tabs for beveled doors. As an authorized Schlage dealer, E.D. Locks offers expert installation guidance and keying support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Schlage
- Model: L9080L MERL 619 RH
- Series: L9000 (Extra Heavy Duty)
- Grade: ANSI Grade 1
- Handing: Right Hand
- Case Construction: Heavy-gauge, fully wrapped steel
- Working Parts: All-metal zinc dichromate-plated
- Anti-friction Tongue: Two-piece design
- Spindle: Break-away with hub blocking plate
- Fail-secure Mode: Spring-loaded fusible link
- Functions Available: Ten in one universal case
- Mounting: Floating tabs, field-reversible
- Lever Operation: Independent rotation, both directions
