Description

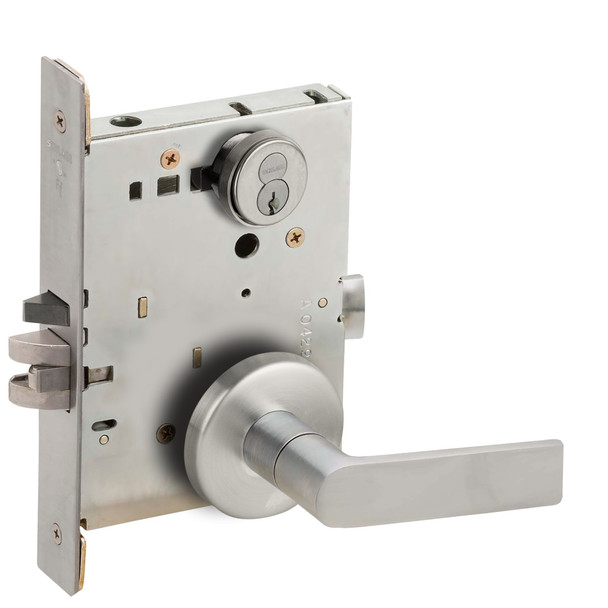

The Schlage L9080R 01B 626 is an extra heavy-duty mortise lock built for high-traffic institutional environments including schools, hospitals, and factories. It combines ANSI Grade 1 security with dependable operation under constant use, reducing wear through anti-friction design and fully wrapped steel case construction.
This universal lock case accommodates ten functions in one unit and features field-reversible handing without opening the lock. Compatible with beveled door edges via floating mounting tabs. As an authorized Schlage dealer, E.D. Locks provides expert guidance on function selection, finish options, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Brand: Schlage
- Model: L9080R 01B 626
- Type: Mortise Lock
- Series: L Series (Extra Heavy Duty)
- Security Rating: ANSI Grade 1
- Case Material: Heavy-gauge steel with zinc dichromate plating
- Functions: 10 functions in universal case
- Handing: Field-reversible without opening case
- Features: Break-away spindle, hub blocking plate, spring-loaded fusible link, independent lever rotation, locking thumb-turn
- Installation: Through-bolted trim, floating mounting tabs for beveled doors
