Description

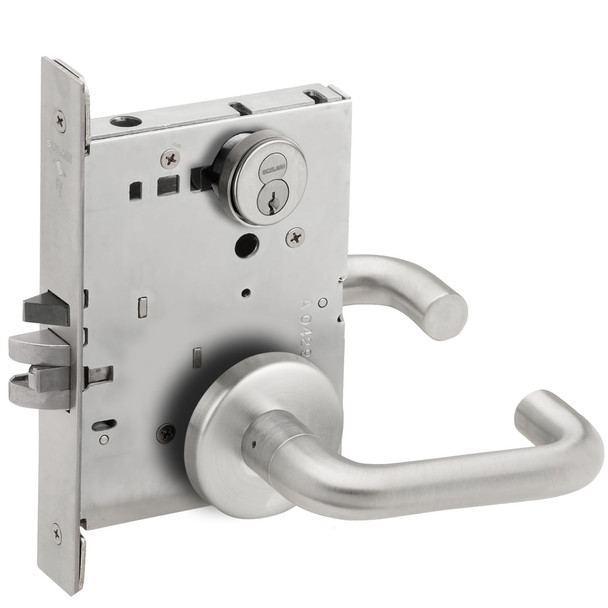

The Schlage L9080R 03B 626 is an extra heavy-duty mortise lock built for high-traffic institutional environments including schools, hospitals, and factories. It delivers ANSI Grade 1 security with consistent, dependable operation under constant use, solving the need for durable hardware that withstands daily abuse while maintaining aesthetic appeal.
This universal lock case supports ten functions in one body and accommodates beveled doors with floating mounting tabs. The L9080R is field-reversible without opening the case, simplifying installation and retrofit projects. As an authorized Schlage dealer, E.D. Locks provides expert guidance on keying, compatibility, and specification questions. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Brand: Schlage
- Model: L9080R 03B 626
- Series: L Series (Extra Heavy Duty)
- Security Standard: ANSI Grade 1
- Case Construction: Heavy-gauge, fully wrapped steel with zinc dichromate-plated parts
- Handing: Field-reversible without opening lock case
- Functions Available: Ten functions in one case
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure mode), locking thumb-turn
- Installation: Floating mounting tabs for beveled doors, thru-bolted trim, external spring cages for trim retrofit
- Lever Operation: Independent rotation in both directions
