Description

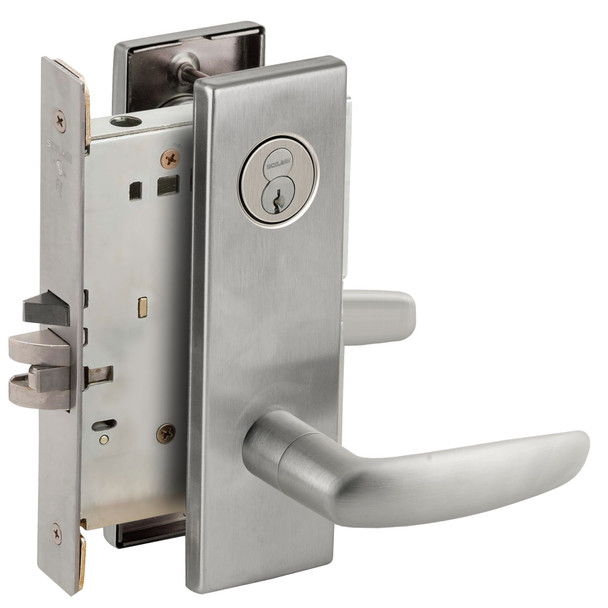

The Schlage L9080R 07N 626 is an extra heavy duty mortise lock engineered for high-traffic commercial environments including schools, hospitals, and factories. Built to ANSI Grade 1 standards, it combines a heavy-gauge steel case, zinc dichromate-plated components, and a two-piece anti-friction tongue to deliver dependable security and smooth operation under constant use.
This lock features a universal case with ten functions and field-reversible handing, simplifying installation and retrofit projects. Compatible with standard mortise openings, it includes a break-away spindle for easy maintenance and a spring-loaded fusible link for fail-secure fire protection. As an authorized Schlage dealer, E.D. Locks offers expert guidance on keying and specification. Contact sales@edlocks.com or call 1-877-207-6067 for application support.
Specifications
- Grade: ANSI Grade 1
- Case Material: Heavy-gauge wrapped steel
- Working Parts: Zinc dichromate-plated all-metal components
- Functions: Ten functions in one universal case
- Handing: Field-reversible without opening lock case
- Interior: Locking thumb-turn with spindle blocking hub plate
- Fire Protection: Spring-loaded fusible link, fail-secure mode
- Mounting: Floating tabs for beveled door edges, thru-bolted trim
