Description

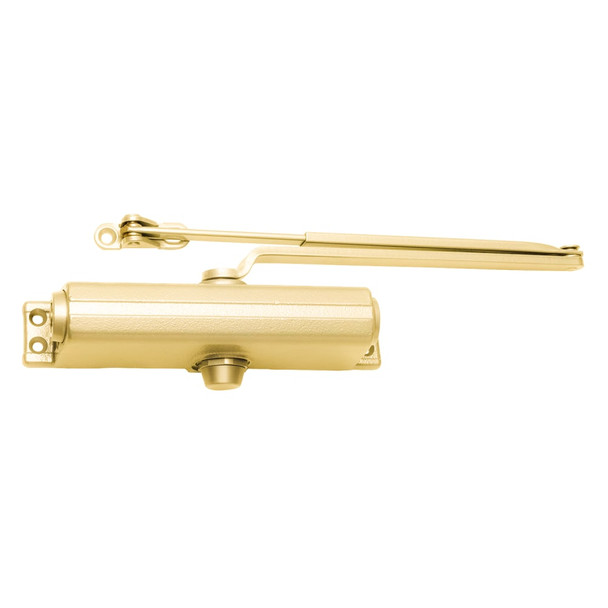

The LCN 1260 Series 1261-RW/PA is a Grade 1 cast iron door closer built for light to medium duty commercial applications. Its non-handed design and adjustable spring sizes 1-5 make it ideal for facilities managers and contractors seeking reliable, versatile closing performance across multiple door types and traffic levels.
This model features a 1-3/8 inch diameter piston, 5/8 inch heat treated pinion journal, and includes the 62PA shoe for secure mounting. Installation is simplified with the peel-n-stick template and 3/4 inch by 9-1/16 inch mounting hole pattern. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on sizing, keying, and compatibility with your specific door frame and traffic requirements.
Specifications
- Brand: LCN
- Series: 1260 Series
- Model: 1261-RW/PA 696
- Type: Surface Mounted Door Closer
- Arm Style: Regular Arm
- Shoe: 62PA
- Duty Rating: Grade 1
- Material: Cast Iron
- Finish: Brass (US4)
- Piston Diameter: 1-3/8 Inch
- Pinion Journal Diameter: 5/8 Inch
- Spring Adjustment Range: Sizes 1-5
- Mounting Hole Pattern: 3/4 Inch by 9-1/16 Inch
- Design: Non-Handed
