Description

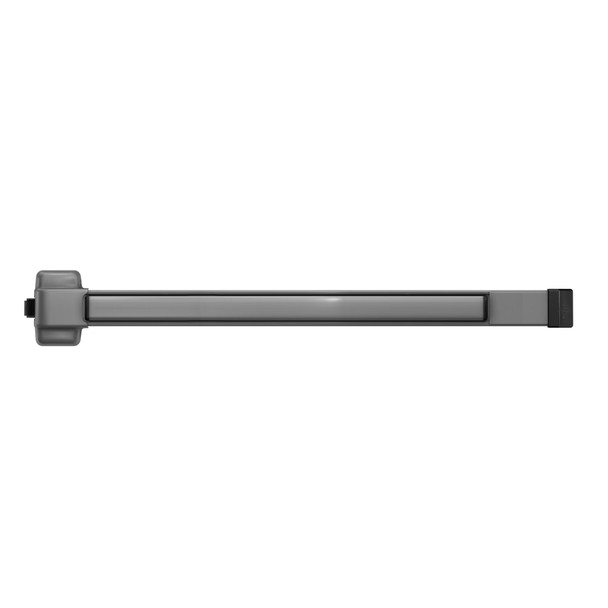

The Von Duprin LD22EO 3 689 is a Grade 1 rim exit device designed for single and double doors with or without mullions. This UL-listed panic hardware meets ANSI A156.3, 2008 standards and fits door stiles as narrow as 3 13/16 inches. Non-handed design works on any door configuration, making it ideal for facilities requiring reliable emergency egress.
Available in 3-foot and 4-foot lengths with multiple function options (EO, DT, NL, TP, K, L) and optional electric monitoring or dogging features. Compatible with hollow metal and wood doors using included fasteners. Our authorized dealer team can help you select the right configuration and provide expert installation support—call 1-877-207-6067 or email sales@edlocks.com.
Specifications
- Device Type: Rim Exit Device, Grade 1
- Standards: UL Listed, ANSI A156.3 2008
- Minimum Door Stile Width: 3 13/16 inches (97 mm)
- Centerline Height from Floor: 39 13/16 inches (1011 mm) standard, 39 11/16 inches (1008 mm) with mullion
- Available Lengths: 3 feet (914 mm), 4 feet (1219 mm)
- Center Case Dimensions: 4 1/4 inch x 1 3/8 inch x 2 3/8 inch (108 mm x 41 mm x 60 mm)
- Mechanism Case Dimensions: 2 inch x 3 3/4 inch (51 mm x 95 mm)
- Push Bar Projection: 3 3/4 inches neutral (95 mm), 3 inches depressed (76 mm)
- Latch Bolt: Deadlocking, 3/4 inch (19 mm) throw
- Dogging: Hex key standard, less dogging option available
- Electric Options: LX latchbolt monitor, RX pushpad monitor, RX2 double pushpad monitor, ALK alarm exit kit, Allegion Connect
- Mechanical Options: Glass bead kit, accessible device
- Fasteners: Includes 1 3/4 inch (44 mm) and 2 1/4 inch (57 mm) for wood and metal doors
- Strike: 299 Dull Black finish
- Non-Handed: Yes
