Description

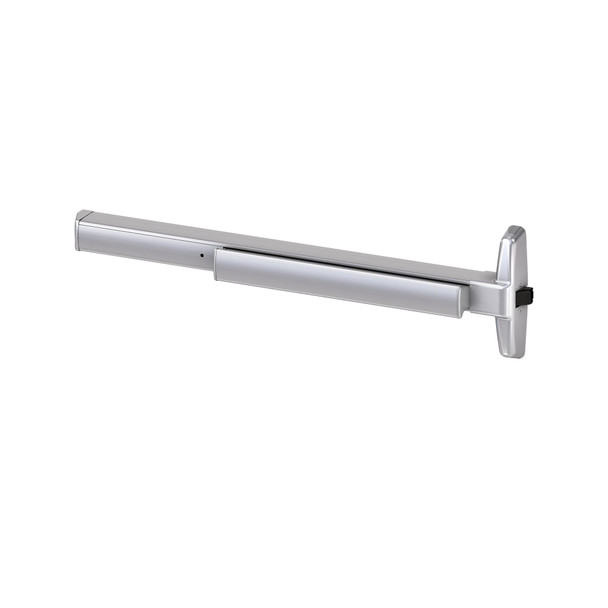

The Von Duprin LD75L-DT-12 is a narrow stile exit device built for warehouses, industrial facilities, offices, multifamily buildings, retail spaces, and commercial properties. This Grade 1 certified device delivers reliable emergency egress performance with dummy trim configuration, suitable for applications requiring code-compliant life safety hardware without active locking functions.
This 3-inch model is field-sizeable for single and double door installations in rim-mounted applications. Finished in satin chrome (626), it integrates with Von Duprin's full trim ecosystem. As an authorized dealer, E.D. Locks provides expert guidance on sizing, installation, and keying. Contact our team at sales@edlocks.com or 1-877-207-6067 for technical support and to confirm compatibility with your specific door frame and application requirements.
Specifications
- Brand: Von Duprin
- Model: LD75L-DT-12 3 626 LHR
- Device Type: Rim-mounted
- Length: 3 inches (field-sizeable)
- Trim Function: Dummy Trim (DT)
- Lever: Lever (L)
- Finish: Satin Chrome (626)
- Certification: ANSI/BHMA A156.3 Grade 1
- Fire Rating Certifications: ANSI/UL 10C, ANSI/UL 305, CAN/ULC-S104, CAN/ULC-S132
