Description

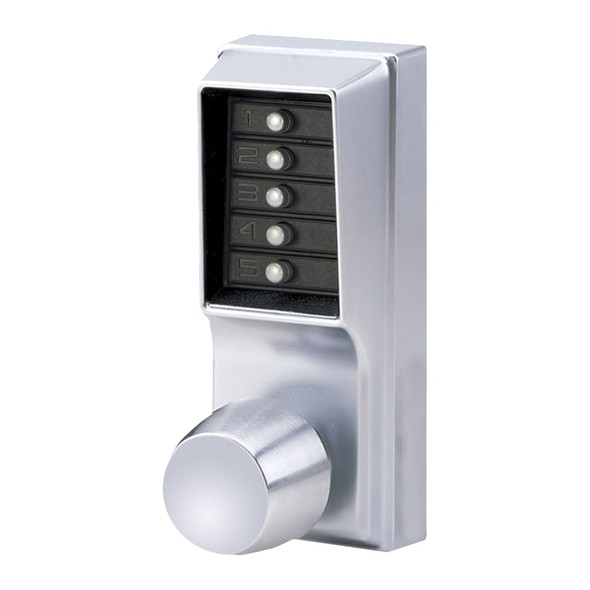

The DormaKaba LL1012 Simplex mechanical pushbutton lock provides keyless access control for interior doors in offices, hospitals, schools, and secure facilities. This heavy-duty cylindrical lock eliminates keys, cards, and batteries while allowing combinations to be changed in seconds without removing the lock from the door.
The LL1012 installs on wood or metal doors (1 3/8" to 2 1/4" thickness) with standard ASA 161 preparation and features vandal-resistant metal pushbuttons, fixed ADA-compliant levers, and a 3-hour UL/ULC fire rating. As an authorized DormaKaba dealer, E.D. Locks provides expert guidance on handing, backset selection, and latch options. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for compatibility assistance.
Specifications
- Construction: Heavy-duty cylindrical lock with cast front housing and unified trim plate
- Door Thickness: 1 3/8" (35 mm) to 2 1/4" (57 mm)
- Pre-assembled for: 1 5/8" (41 mm) to 2" (51 mm) doors
- Backset Options: 2 3/4" (70 mm) or 2 3/8" (60 mm)
- Latch: 1/2" (13 mm) throw or 3/4" (19 mm) throw (optional)
- Minimum Stile: 5" (127 mm)
- Keypad: Vandal-resistant solid metal pushbuttons
- Handing: Factory-handed, not field reversible
- Strike: Standard or ASA strike plate
- Accessibility: ADA-compliant fixed levers
- Fire Rating: 3-hour UL/ULC for "A" labeled doors
- Compliance: D.O.D. 5220.22M supplemental access control; weather resistant
- Warranty: 3 years
