Description

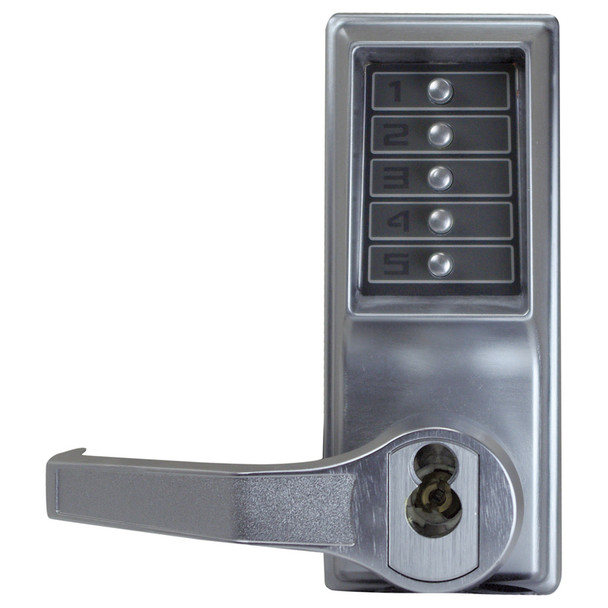

The DormaKaba LL1022S-26D is a heavy-duty mechanical pushbutton lock designed for facilities needing keyless access control without batteries, cards, or computers. Ideal for schools, offices, hospitals, and secure areas, it eliminates key management while allowing combination changes in seconds without door removal.
This cylindrical lock installs on wood or metal doors (1⅜" to 2¼" thick) with standard ASA 161 preparation and accommodates 1⅝" to 2" pre-assembled doors. As an authorized DormaKaba dealer, E.D. Locks provides expert configuration guidance and warranty support. Contact our team at sales@edlocks.com or 1-877-207-6067 for specification verification and installation assistance.
Specifications
- Brand: DormaKaba
- Model: LL1022S-26D-41
- Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)
- Pre-assembled for: 1⅝" (41 mm) to 2" (51 mm) doors
- Backset Options: 2¾" (70 mm), 2⅜" (60 mm)
- Latch: ½" (13 mm) throw, ¾" (19 mm) optional
- Minimum Stile: 5" (127 mm)
- Door Preparation: ASA 161 with through holes
- Keypad: Vandal-resistant solid metal pushbuttons
- Handing: Factory-handed, not field reversible
- Strike: Standard and ASA strike plate compatible
- Finish: Satin Chrome (26D)
- ADA Compliant: Fixed ADA-compliant levers
- Fire Rating: 3-hour UL/ULC for labeled doors
- Standards: D.O.D. 5220.22M compliant, weather resistant
- Warranty: 3 years
