Description

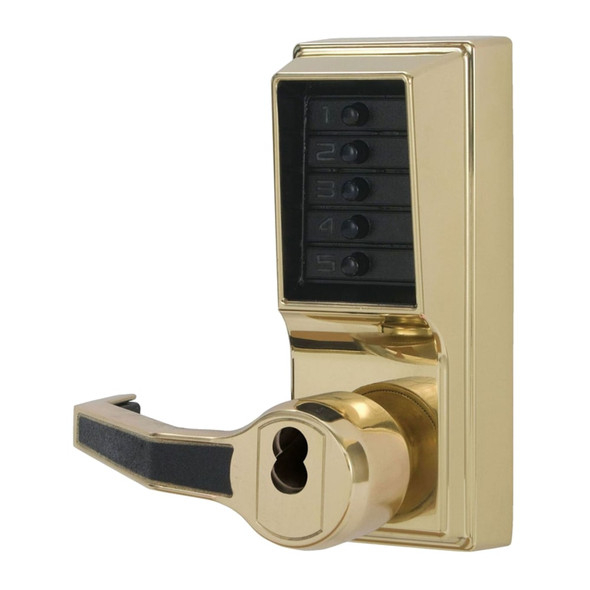

The DormaKaba LL1025B-26D Simplex mechanical pushbutton lock provides keyless access control for commercial and institutional doors without batteries, computers, or key management. Heavy-duty cylindrical construction with cast front housing and ADA-compliant fixed levers suits applications where convenient, secure access between public and private areas is essential.
Compatible with wood or metal doors 1⅜" to 2¼" thick, this lock installs using standard ASA 161 door preparation and is factory-handed for your specific application. As an authorized DormaKaba dealer, E.D. Locks offers expert guidance on model selection, installation, and combination setup. Contact sales@edlocks.com or call 1-877-207-6067 for technical assistance or to verify compatibility with your door configuration.
Specifications
- Brand: DormaKaba
- Model: LL1025B-26D
- Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)
- Pre-assembled for: 1⅝" (41 mm) to 2" (51 mm) doors
- Backset Options: 2¾" (70 mm) or 2⅜" (60 mm)
- Latch Throw: ½" (13 mm) standard; ¾" (19 mm) optional
- Keypad: Vandal-resistant solid metal pushbuttons
- Levers: Fixed ADA-compliant
- Strike: Standard or ASA strike plate
- Fire Rating: 3-hour UL/ULC for "A" labeled doors
- Compliance: ADA, D.O.D. 5220.22M, weather resistant
- Warranty: 3 years
- Handing: Factory-handed, not field reversible
- Minimum Stile: 5" (127 mm) recommended
