Description

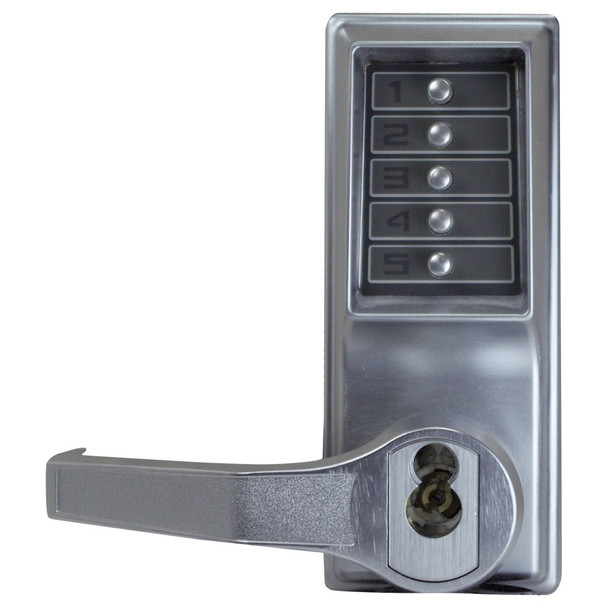

The DormaKaba LL1025R-26D-41 is a heavy-duty mechanical pushbutton lock ideal for controlling access between public and private areas without keys, cards, or batteries. Its vandal-resistant keypad and cast front housing deliver reliable security, with combinations changeable in seconds without removing the lock from the door.
This cylindrical lock installs on wood or metal doors with ASA 161 preparation and accommodates door thicknesses from 1 3/8" to 2 1/4". It features factory-handed ADA-compliant levers, a 1/2" throw latch, 2 3/4" backset, and a 3-hour UL/ULC fire rating. As an authorized DormaKaba dealer, E.D. Locks provides expert installation guidance and support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Door Thickness: 1 3/8" (35 mm) to 2 1/4" (57 mm)
- Pre-assembled for: 1 5/8" (41 mm) to 2" (51 mm) doors
- Backset Options: 2 3/4" (70 mm), 2 3/8" (60 mm)
- Latch Throw: 1/2" (13 mm) standard, 3/4" (19 mm) optional
- Door Preparation: ASA 161 with additional through holes
- Minimum Stile: 5" (127 mm)
- Strike: Standard or ASA strike plate
- Accessibility: ADA-compliant fixed levers
- Fire Rating: 3-hour UL/ULC for "A" labeled doors
- Compliance: D.O.D. Compliant 5220.22M
- Warranty: 3 years
