Description

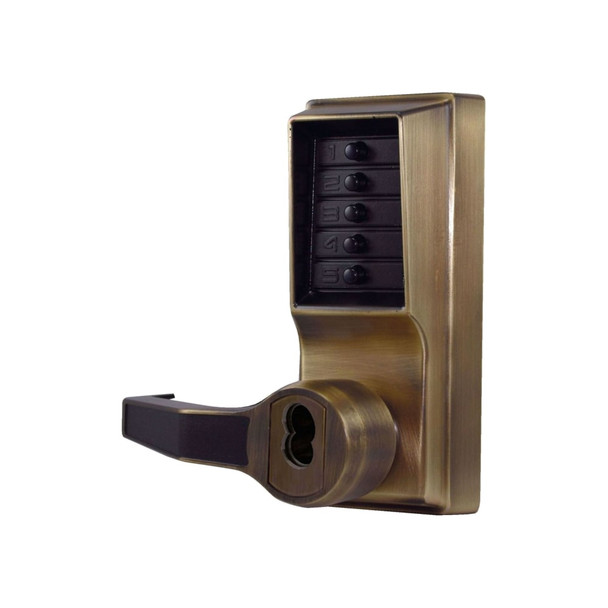

The DormaKaba LL1041C-05-41 is a heavy-duty mechanical pushbutton lock designed for controlled access in commercial and institutional settings. It eliminates the need for keys, cards, or batteries, making it ideal for facilities managers and security professionals who need simple, reliable access control between public and private areas. Combinations change in seconds without removing the lock.
This cylindrical lock installs on wood or metal doors with standard ASA 161 preparation and fits door thicknesses from 1 3/8 inch to 2 1/4 inch. Factory-handed and not field reversible, it features a 3-hour UL/ULC fire rating and D.O.D. compliance for supplemental access control. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert installation guidance, keying support, and access to our full inventory of commercial hardware solutions.
Specifications
- Brand: DormaKaba
- Model: LL1041C-05-41
- Door Thickness: 1 3/8 inch to 2 1/4 inch (pre-assembled for 1 5/8 inch to 2 inch)
- Backset: 2 3/4 inch or 2 3/8 inch
- Latch Throw: 1/2 inch standard, 3/4 inch optional
- Pushbuttons: Vandal-resistant solid metal
- Levers: ADA-compliant fixed
- Strike: Standard or ASA strike plate
- Fire Rating: 3-hour UL/ULC for A labeled doors
- Compliance: D.O.D. 5220.22M, ADA, weather resistant
- Warranty: 3 years
- Handing: Factory-handed, not field reversible
