Description

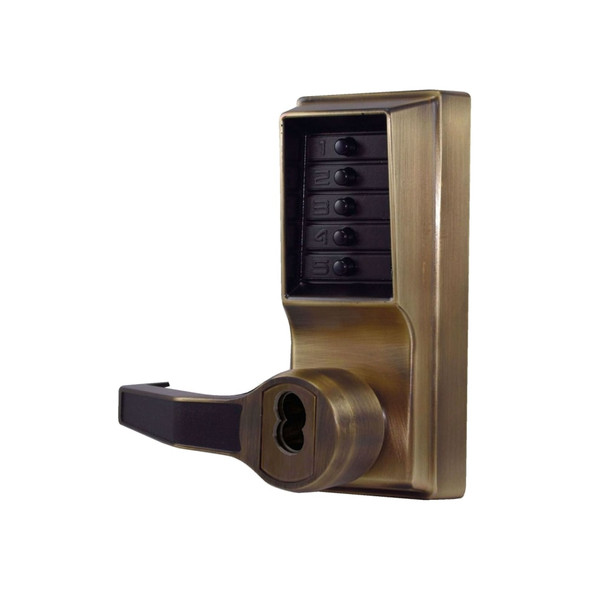

The DormaKaba LL1076S-03-41 is a heavy-duty mechanical pushbutton lock designed for controlled access in commercial and institutional settings. Ideal for facilities managers and security professionals, it eliminates key and card management by using a simple numeric code, with combinations changeable in seconds without removing the lock from the door.
This cylindrical lock installs on wood or metal doors (1⅜ to 2¼ inches thick) with standard ASA 161 preparation and features ADA-compliant fixed levers. It carries a 3-year warranty, UL/ULC 3-hour fire rating, and DOD compliance for supplemental access control. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert installation guidance and product support.
Specifications
- Brand: DormaKaba
- Model: LL1076S-03-41
- Lock Type: Mechanical pushbutton, cylindrical
- Door Thickness: 1⅜ to 2¼ inches (pre-assembled for 1⅝ to 2 inches)
- Backset Options: 2¾ inches or 2⅜ inches
- Latch Throw: ½ inch standard; ¾ inch optional
- Keypad: Vandal-resistant solid metal pushbuttons
- Levers: Fixed ADA-compliant
- Strike: Standard or ASA strike plate
- Fire Rating: UL/ULC 3-hour for A-labeled doors
- Compliance: DOD 5220.22M, ADA, weather resistant
- Handing: Factory-handed, not field reversible
- Warranty: 3 years
