Description

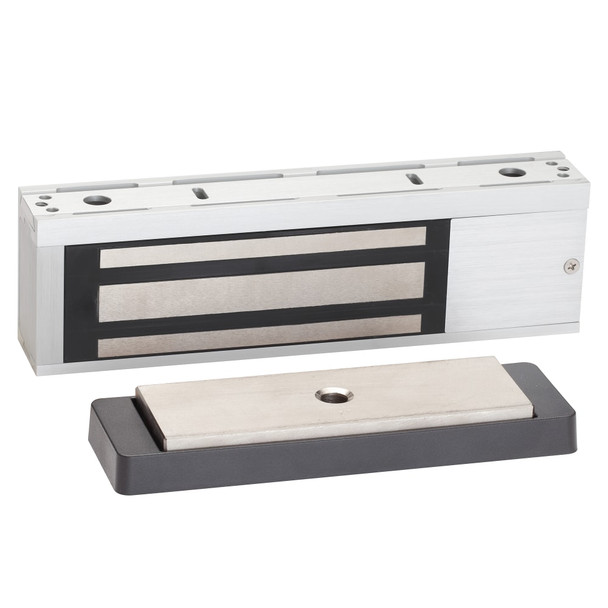

The Locknetics by Schlage M450 is a single-door electromagnetic lock delivering 1000 lb. hold force for secure access control in commercial and institutional settings. Designed for installers, its bayonet mounting system keeps hands free during installation, while symmetrical, field-selectable handing accommodates any door configuration without repositioning the magnet.
The M450 integrates with most access control systems and accepts 12 or 24 volt power with automatic voltage sensing and polarity protection, simplifying wiring. UL 1034 and BHMA certified, it features an armature mount pivot for slight opening imperfections. Contact our team at sales@edlocks.com or 1-877-207-6067 for compatibility verification, installation templates, and expert guidance from an authorized Schlage dealer.
Specifications
- Hold Force Rating: 1000 lb.
- Voltage: 12 or 24 VDC with Automatic Voltage Selection (AVS)
- Polarity Protection: Yes
- Field-Selectable Handing: Yes
- Mounting: Bayonet mount
- Finish: Aluminum painted
- Certifications: UL 1034, BHMA
- Warranty: Limited lifetime on magnetic coil assembly
