Description

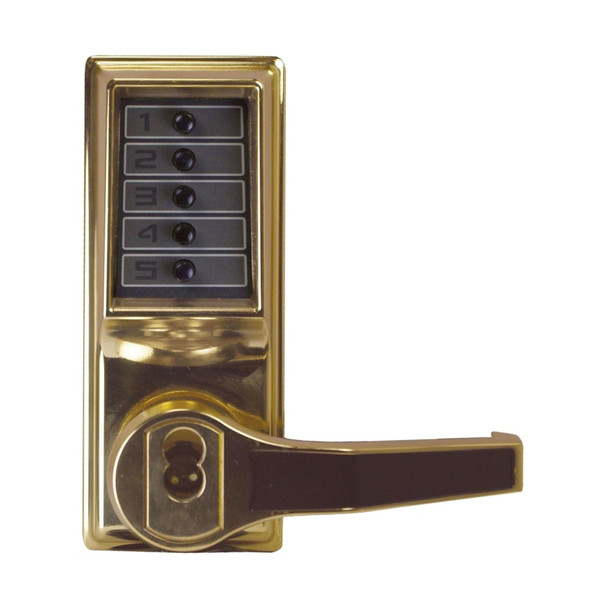

The DormaKaba Simplex LR1025S is a heavy-duty mechanical pushbutton lock designed for facilities managers and security professionals who need keyless access control without batteries, computers, or maintenance. It solves access management challenges by allowing combination changes in seconds without door removal, ideal for offices, hospitals, and secured areas.
This lock installs on wood or metal doors (1 3/8" to 2 1/4" thickness) with standard ASA 161 preparation and features ADA-compliant fixed levers and vandal-resistant pushbuttons. It is factory-handed and not field-reversible. As an authorized DormaKaba dealer, E.D. Locks provides expert installation guidance and access control consulting. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for handing selection, backset options, and compatibility questions.
Specifications
- Brand: DormaKaba
- Model: LR1025S-03-41
- Lock Type: Mechanical Pushbutton Cylindrical
- Door Thickness: 1 3/8" to 2 1/4" (35-57 mm); pre-assembled for 1 5/8" to 2" doors
- Backset Options: 2 3/4" (70 mm) or 2 3/8" (60 mm)
- Latch Throw: 1/2" (13 mm) standard; 3/4" (19 mm) optional
- Minimum Stile: 5" (127 mm)
- Door Preparation: ASA 161 with through holes
- Strike: Standard or ASA strike plate
- Handing: Factory-handed, not field reversible
- Pushbuttons: Vandal-resistant solid metal
- Levers: ADA-compliant fixed levers
- Fire Rating: 3-hour UL/ULC for "A" labeled doors
- Compliance: ADA accessible; D.O.D. 5220.22M supplemental access control
- Weather Resistance: Yes
- Warranty: 3 years
