Description

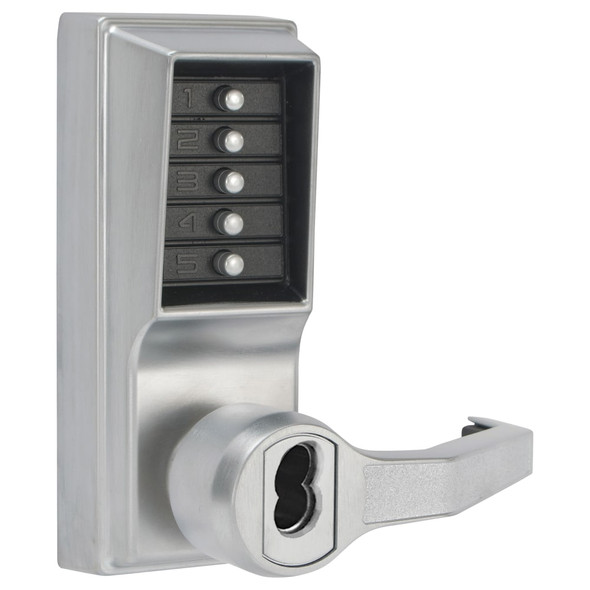

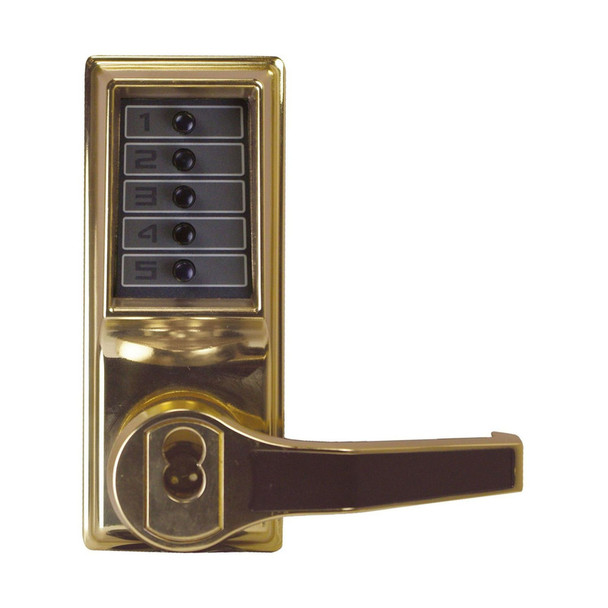

The DormaKaba LR1041M-03-41 is a heavy-duty mechanical pushbutton lock designed for facilities managers and building owners who need keyless access control between public and private areas. No keys, cards, computers or batteries required, and combinations change in seconds without door removal. Heavy-duty cylindrical housing with ADA-compliant fixed levers suits wood or metal doors.
Installs on standard ASA 161 door preparation for 1⅜" to 2¼" thick doors, pre-assembled for 1⅝" to 2" doors. Factory-handed and not field reversible. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for handing confirmation, backset selection, and latch throw options before ordering.
Specifications
- Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)
- Pre-Assembled For: 1⅝" (41 mm) to 2" (51 mm) doors
- Backset Options: 2¾" (70 mm), 2⅜" (60 mm)
- Latch Throw: ½" (13 mm) standard, ¾" (19 mm) optional
- Minimum Stile Recommended: 5" (127 mm)
- Keypad: Vandal-resistant solid metal pushbuttons
- Handing: Factory-handed; not field reversible
- Door Preparation: ASA 161 with additional through holes
- Accessibility: ADA-compliant fixed levers
- Fire Rating: 3-hour UL/ULC for "A" labeled doors
- Compliance: D.O.D. 5220.22M supplemental access control; weather resistant
- Warranty: 3-year
