Description

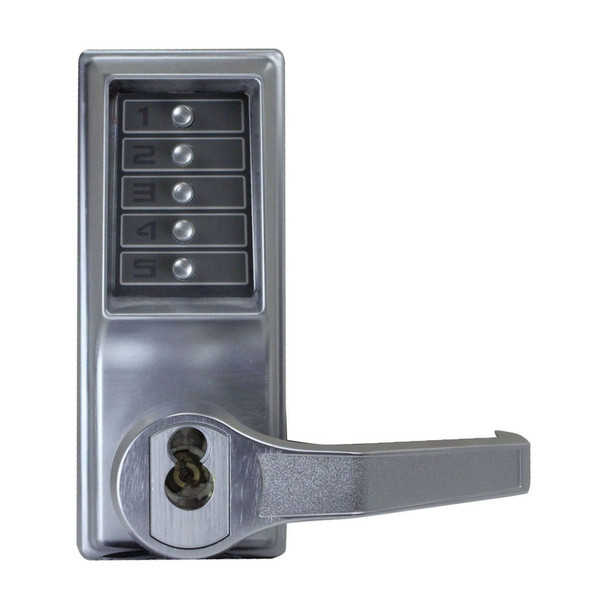

The DormaKaba LR1045B-26D is a heavy-duty mechanical pushbutton lock designed for controlled access between public and private areas without keys, cards, or batteries. Ideal for offices, healthcare facilities, and commercial buildings, this vandal-resistant lock lets you change combinations in seconds without removing it from the door, solving access management challenges.
This lock installs on wood or metal doors with ASA 161 preparation and accommodates door thicknesses from 1 3/8 inch to 2 1/4 inch. It features ADA-compliant fixed levers, D.O.D. compliance, 3-hour UL/ULC fire rating, and weather resistance. As an authorized DormaKaba dealer, E.D. Locks provides expert installation guidance and support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: DormaKaba
- Model: LR1045B-26D-41
- Lock Type: Mechanical pushbutton cylinder
- Door Thickness: 1 3/8 inch to 2 1/4 inch (pre-assembled for 1 5/8 inch to 2 inch)
- Backset Options: 2 3/4 inch or 2 3/8 inch
- Latch: 1/2 inch throw (standard) or 3/4 inch throw (optional)
- Strike: Standard or ASA strike plate
- Minimum Stile: 5 inches recommended
- Keypad: Vandal-resistant solid metal pushbuttons
- Accessibility: ADA-compliant fixed levers
- Compliance: D.O.D. 5220.22M supplemental access control
- Fire Rating: 3-hour UL/ULC for 'A' labeled doors
- Weather Resistance: Yes
- Handing: Factory-handed, not field reversible
- Warranty: 3 years
