Description

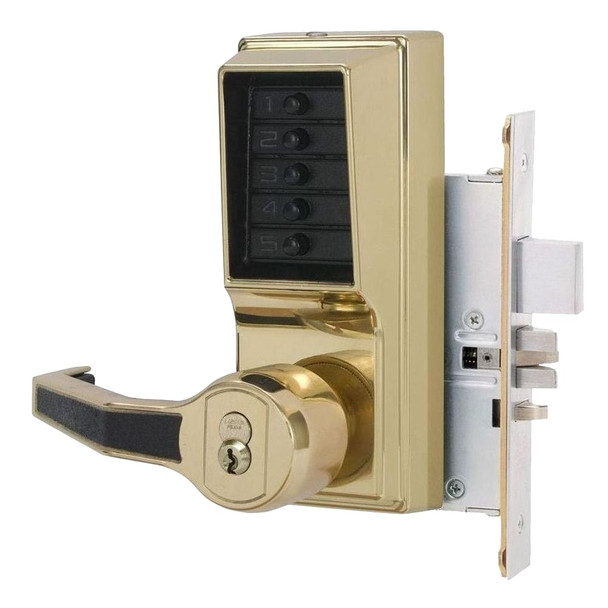

The DormaKaba Simplex LR8148B-03-41 is a mechanical pushbutton lock designed for facilities managers and building owners who need keyless access control between public and private areas. With no keys, cards, computers, or batteries required, this lock eliminates management overhead while allowing combinations to be changed in seconds without removal from the door.
This lock fits standard 86 mortise preparations on wood or metal doors (1.75 to 2.25 inches thick) and features ADA-compliant fixed levers, a 2.75 inch backrest, and a 3-hour UL/ULC fire rating. It accepts small-format interchangeable cores (Best or equivalents) and large-format removable cores from Medeco, ASSA, Yale, Abloy, Corbin Russwin, Schlage, and Sargent. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert installation guidance and compatibility verification.
Specifications
- Backset: 2.75 inches (70 mm)
- Latch: 0.75 inches (19 mm) two-piece anti-friction; 1 inch (25 mm) optional deadbolt
- Strike: 4.875 inches (124 mm) L x 1.25 inches (32 mm) W x 0.25 inches (6 mm) D
- Minimum Stile Recommended: 5 inches (127 mm)
- Door Thickness: 1.75 to 2.25 inches (44 to 57 mm)
- Door Preparation: Standard 86 mortise
- Compatible Door Types: Wood and metal
- Fire Rating: 3-hour UL/ULC for A labeled doors
- Accessibility: ADA-compliant fixed levers
- Core Format: Small format interchangeable (Best, 6 or 7-pin); Large format removable (Medeco, ASSA, Yale, Abloy, Corbin Russwin, Schlage, Sargent, 5 or 6-pin)
- Warranty: 3-year
