Description

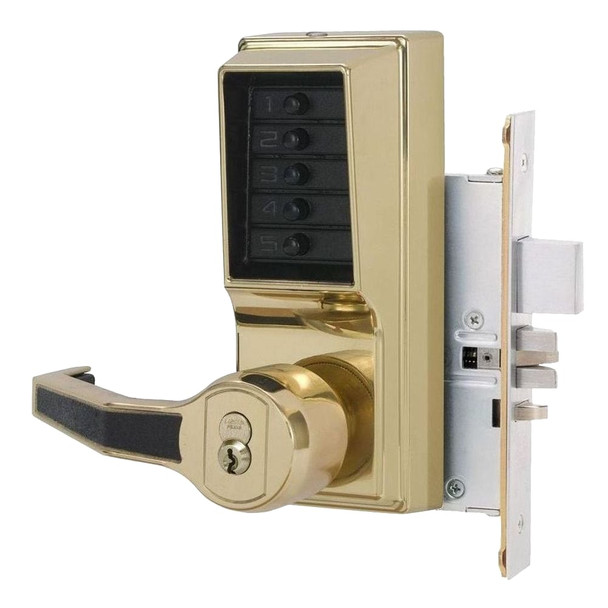

The DormaKaba Simplex LR8148S-03-41 is a mechanical pushbutton lock designed for controlled access in offices, healthcare facilities, and institutional buildings. It eliminates keys, cards, and batteries while allowing combination changes in seconds without door removal, making it ideal for high-traffic areas requiring frequent access updates.
This lock fits standard 86 mortise preparation on wood or metal doors (1¾" to 2¼" thick) and features a 2¾" backset with optional 1" deadbolt. For compatibility details, core options, and expert installation guidance, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 to ensure proper specification for your door and security needs.
Specifications
- Brand: DormaKaba
- Model: LR8148S-03-41
- Lock Type: Mechanical pushbutton
- Backset: 2¾" (70 mm)
- Latch: ¾" (19 mm) two-piece anti-friction; 1" (25 mm) optional deadbolt
- Numeric Keypad: Vandal-resistant solid metal pushbuttons
- Trim: Cast front housing with unified trim plate
- Levers: Fixed ADA-compliant
- Door Preparation: Standard 86 mortise
- Door Thickness: 1¾" (44 mm) to 2¼" (57 mm)
- Strike: 4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D
- Minimum Stile: 5" (127 mm)
- Interchangeable Cores: Small format (Best and equivalents, 6 or 7-pin)
- Removable Cores: Large format (Medeco, ASSA, Yale, Abloy, Corbin Russwin, Schlage, Sargent)
- Fire Rating: 3-hour UL/ULC for "A" labeled doors
- Weather Resistance: Yes
- Accessibility: ADA-compliant
- Warranty: 3-year
