Description

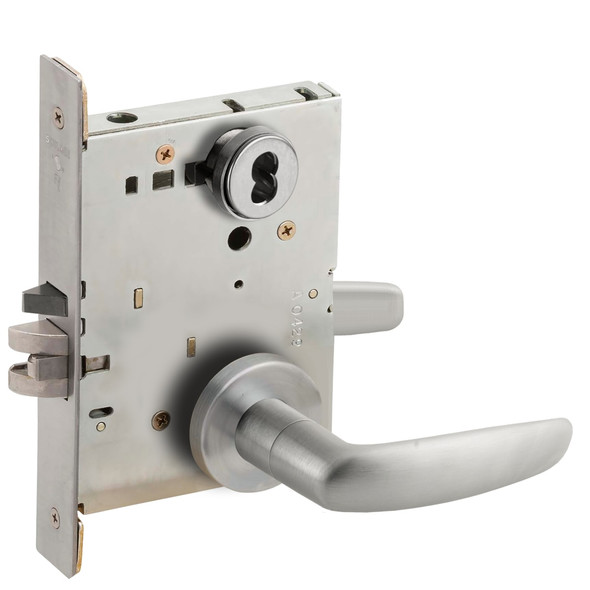

The Schlage L9076B 07A 626 is an extra heavy-duty mortise lock built for high-traffic institutional environments including schools, hospitals, and factories. It meets ANSI Grade 1 safety standards and features a heavy-gauge steel case, all-metal zinc dichromate-plated components, and anti-friction tongue design to deliver dependable operation under constant use and abuse.
This universal lock case supports ten functions in one housing with field-reversible handing and adaptability to beveled door edges. Compatible with standard mortise lock installations. For keying options, compatibility verification, and expert guidance on selecting the right function and finish for your application, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Grade: ANSI Grade 1
- Lock Type: Extra Heavy Duty Mortise
- Case Material: Heavy-gauge steel with zinc dichromate-plated working parts
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link for fail-secure fire mode
- Functions: 10 functions available in single case
- Handing: Field-reversible without opening case
- Mounting: Thru-bolted trim, floating tabs for beveled doors, screwless shank mounting
