Description

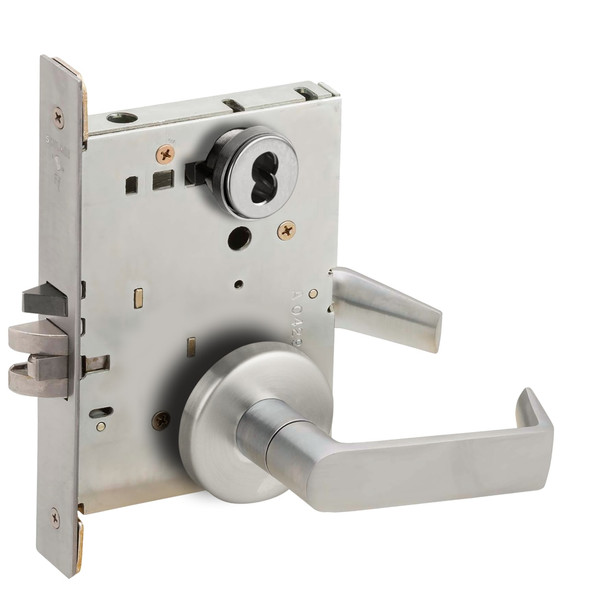

The Schlage L9080B is an extra heavy-duty mortise lock built for high-traffic commercial environments including schools, hospitals, and factories. It meets ANSI Grade 1 standards and features a heavy-gauge steel case, zinc dichromate-plated components, and anti-friction design to withstand constant use without compromising security or aesthetics.
This mortise lock offers universal compatibility with ten functions in one case and field-reversible handing without opening the lock. Installation works with beveled doors via floating mounting tabs. As an authorized Schlage dealer, E.D. Locks provides expert guidance on keying, finish selection, and application-specific requirements. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Schlage
- Series: L9000 (L Series)
- Model: LV9080B 06B 626
- Grade: ANSI Grade 1
- Case Material: Heavy-gauge wrapped steel
- Working Parts: All-metal zinc dichromate-plated
- Functions: Ten in one case
- Handing: Field-reversible
- Mounting: Universal with floating tabs for beveled doors
- Security Features: Break-away spindle, hub blocking plate, spring-loaded fusible link (fail secure)
- Trim Mount: Screwless shank, no exposed screws
- Lever Action: Independent rotation in both directions
