Description

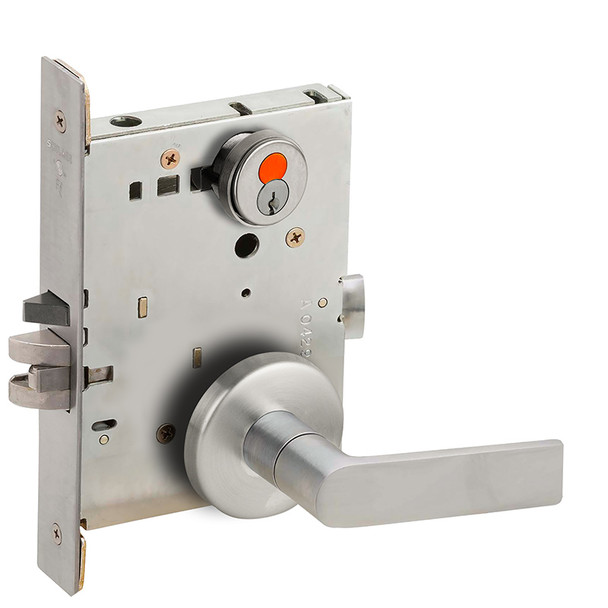

The Schlage L9080H is an extra heavy-duty mortise lock engineered for high-traffic commercial environments including schools, hospitals, and factories. This Grade 1 certified lock features a fully wrapped steel case, all-metal zinc dichromate-plated components, and anti-friction design to withstand constant use without fail while meeting the most demanding security standards.
The L9080H offers ten functions in one universal case with field-reversible handing, simple trim retrofit, and fail-secure operation via spring-loaded fusible link. Compatible with standard mortise lock applications and beveled doors. As an authorized Schlage dealer, E.D. Locks provides expert guidance on specification and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for assistance selecting the right configuration for your project.
Specifications
- Brand: Schlage
- Series: L Series (L9000)
- Model: LV9080H 01B 630
- Type: Extra Heavy Duty Mortise Lock
- Grade: ANSI Grade 1
- Finish: 630 Bright Brass
- Case: Heavy-gauge, fully wrapped steel
- Working Parts: All-metal zinc dichromate-plated
- Handing: Field-reversible
- Functions: 10 in one case
- Fire Protection: Spring-loaded fusible link, fail-secure mode
- Special Features: Floating mounting tabs for beveled doors, break-away spindle, hub blocking plate, independent lever rotation
