Description

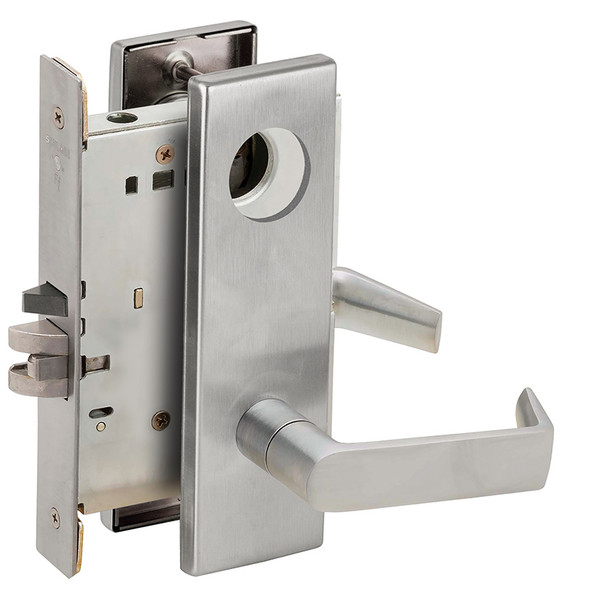

The Schlage LV9080L is an extra-heavy-duty mortise lock engineered for high-traffic commercial environments including schools, hospitals, and factories. Built to ANSI Grade 1 standards, it features a heavy-gauge steel case, zinc dichromate-plated components, and anti-friction tongue design that resists wear from constant daily use and abuse.
This universal lock case supports ten functions in one housing and accommodates beveled door edges with floating mounting tabs. Field-reversible handing eliminates the need to open the case, and external spring cages simplify trim retrofit installations. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on function selection, keying options, and installation support from an authorized Schlage dealer.
Specifications
- ANSI Grade 1 certified
- Heavy-gauge, fully wrapped steel case
- Zinc dichromate-plated working parts
- Two-piece anti-friction tongue
- Break-away spindle with hub blocking plate
- Spring-loaded fusible link for fail-secure fire mode
- Screwless shank inside lever mounting
- Universal case with 10 functions available
- Floating mounting tabs for beveled doors
- Field-reversible handing
- External spring cages for easy trim retrofit
- Independent lever rotation both directions
