Description

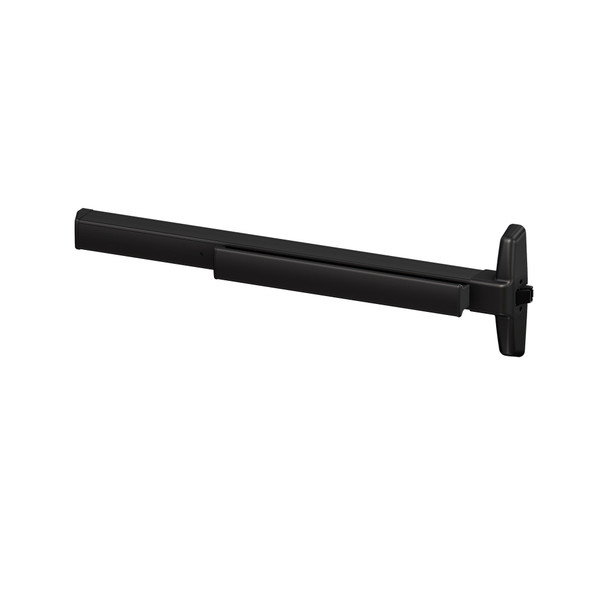

The Von Duprin LX75L-16 is a narrow stile exit device engineered for warehouses, industrial facilities, offices, multifamily buildings, and retail spaces. ANSI/BHMA Grade 1 certified, it delivers reliable egress performance and peace of mind in demanding commercial environments. Choose from rim or vertical rod configurations with field-sizeable 3' or 4' lengths for single and double doors.
This model supports multiple exit trim designs, lever options, and nine durable finishes including matte black, satin stainless steel, and anodized aluminum. As an authorized Von Duprin dealer, E.D. Locks provides expert guidance on compatibility, trim selection, and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support and to confirm your exact configuration.
Specifications
- ANSI/BHMA Grade 1 certified
- Certifications: ANSI/UL 10C (fire rated), ANSI/UL 305, CAN/ULC-S104, CAN/ULC-S132
- Available lengths: 3' and 4' (field sizeable)
- Device types: Rim, SVR (27), CVR (47)
- Exit trim models: 360, 374, 376, 386, 388
- Functions: Exit Only, Dummy Trim, Lever, Lever Blank Escutcheon, Lever Dummy Trim, Night Latch, Night Latch Optional Pull, Turn Lever, Turn Lever Blank Escutcheon
- Finishes: Bright Brass (605), Satin Brass (606), Satin Bronze (612), Satin Nickel (619), Bright Chrome (625), Satin Chrome (626), Anodized Aluminum (628), Satin Stainless Steel (630), Aged Bronze (643e), Duranodic Dark Bronze (710), Matte Black (711)
