Description

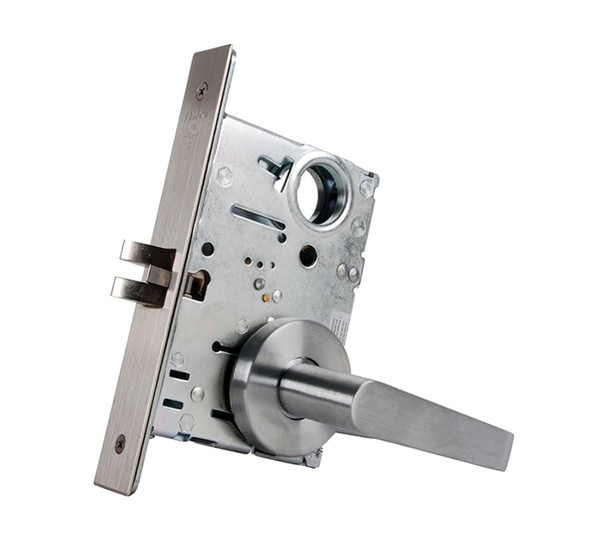

The Falcon MA161 mortise lock delivers dependable security for commercial environments including offices, hospitals, and educational facilities. Built to withstand constant use, this Series 1000 lock features a mechanical anti-friction latch bolt, a 1-inch throw deadbolt with saw-resistant rollers, and an interchangeable core for fast re-keying without removing the lock from the door.
Compatible with standard door thicknesses of 1-3/8 inch to 2-1/2 inch and available in multiple finishes and keyways, the MA161 meets ANSI/BHMA 156.13 standards and carries a 3-hour UL A label. As an authorized Falcon dealer, E.D. Locks provides expert guidance on installation, keying, and electrified options. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA161
- Finish: DG (Satin Chrome)
- Keyway: G (standard)
- Handing: Left Hand Reverse
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Deadbolt: 1 inch throw stainless steel with saw-resistant rollers
- Faceplate: 1-1/4 inch x 8 inch brass or stainless steel
- ANSI/BHMA: Series 1000, meets 156.13
- UL Rating: 3 hour A label
- Electrified: Available in 12 or 24 VDC
