Description

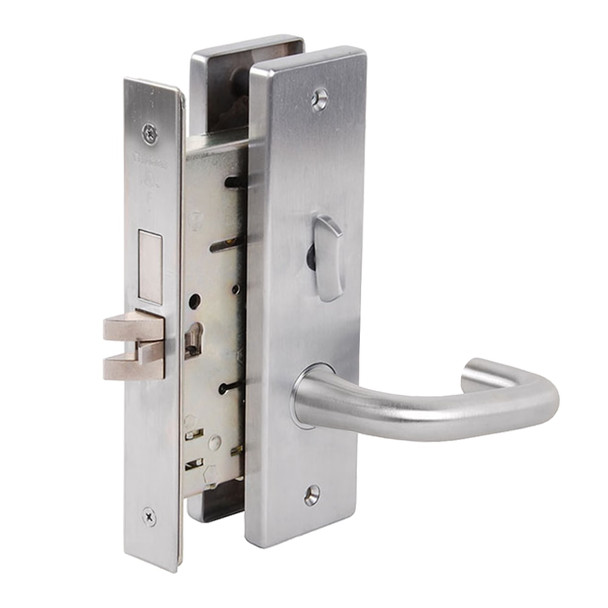

The Falcon MA301 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This dependable SFIC interchangeable core lock combines security with ease of maintenance, featuring a two-piece stainless steel latch, 1-inch deadbolt with saw-resistant rollers, and field-reversible handing to solve retrofit and re-keying challenges.
The MA301 accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 standards with a 3-hour UL label. Its interchangeable core works with SFIC cylinders from other manufacturers for maximum flexibility. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert keying guidance and authorized dealer support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw stainless steel with saw-resistant rollers
- Hubs: Hardened steel
- Cylinders: 5, 6, or 7-pin standard; 6 or 7-pin on I/C
- Keyways: G standard on standard cylinder, A on I/C cylinder
- Faceplates: 1-1/4" x 8" adjustable for door bevel
- Electrified: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour label
