Description

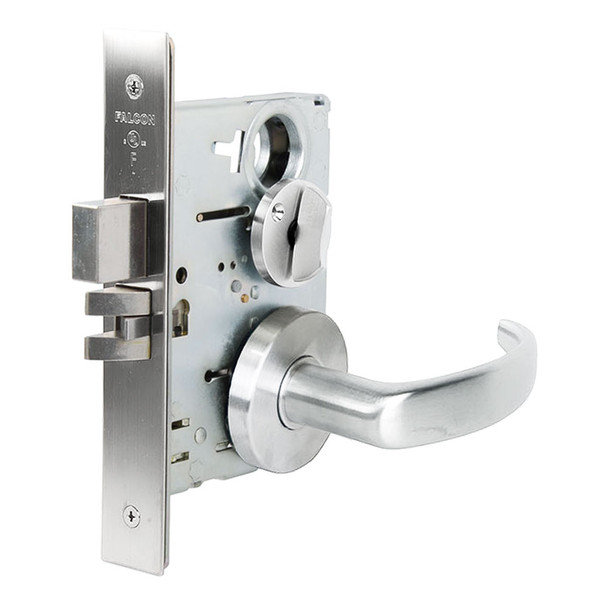

The Falcon MA311 QG 625 is a heavy-duty mortise lock engineered for high-traffic commercial environments including offices, hospitals, and educational facilities. Its interchangeable core design enables quick re-keying without removing the lock from the door, making it ideal for property managers and facilities teams seeking reliable security with minimal downtime.
This lock accommodates standard door thicknesses of 1-3/8" to 2-1/2" and features a 2-3/4" backset. It is compatible with SFIC products and reversible in the field for flexible installation. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing options, and electrified configurations. Contact our team at sales@edlocks.com or 1-877-207-6067 for application support.
Specifications
- Brand: Falcon
- Model: MA311 QG 625
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin available (6 or 7-pin on interchangeable core)
- Keyways: G keyway standard (A keyway standard on I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- Strike: Brass or stainless steel, meets ANSI A115.1
- Electrified: Available in 12 or 24 VDC
- ANSI/BHMA: Series 1000 (156.13)
- UL: 3 hour A label
