Description

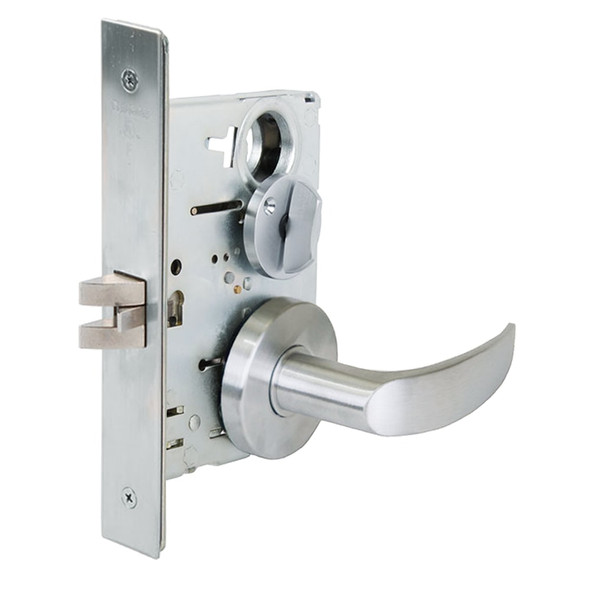

The Falcon MA321 mortise lock is a heavy-duty security solution for commercial offices, hospitals, educational facilities, and similar high-traffic environments. Built on Falcon's reputation for durability, this Series 1000 lock withstands constant use without compromising performance. Its interchangeable core design enables quick re-keying and works with SFIC products from other manufacturers.
The MA321 accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and features a 1" throw deadbolt with saw-resistant rollers and a 3/4" latch projection. It's reversible in the field and available in multiple finishes and electrified options. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert installation guidance and keying assistance.
Specifications
- Brand: Falcon (Allegion)
- Model: MA321 AG 625
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (interchangeable core)
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- Handing: Right hand standard; left hand optional, reversible in field
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: Series 1000, ANSI/BHMA 156.13
- UL: 3 hour A label
