Description

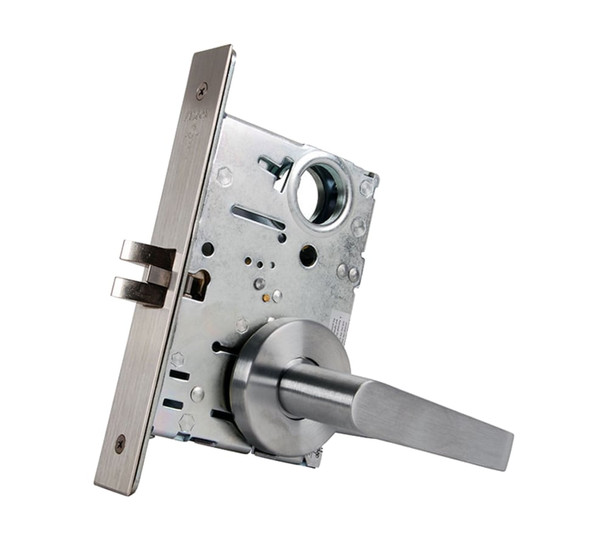

The Falcon MA371B mortise lock is a high-performance commercial lock designed for offices, hospitals, and educational facilities. This dependable lock features a two-piece stainless steel latch bolt with mechanical anti-friction design and a 1-inch throw deadbolt with saw-resistant rollers, providing reliable security for constant-use environments.
The MA371B accommodates doors 1-3/8" to 2-1/2" thick with a 2-3/4" backset and includes an interchangeable core for quick re-keying compatible with SFIC products. It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. For expert guidance on keying, finish selection, or electrified options, contact E.D. Locks at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon
- Model: MA371B DG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplate: 1-1/4" x 8" brass or stainless steel, armored front
- Handing: Right hand standard, left hand optional, field reversible
- Electrified Functions: Available 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
