Description

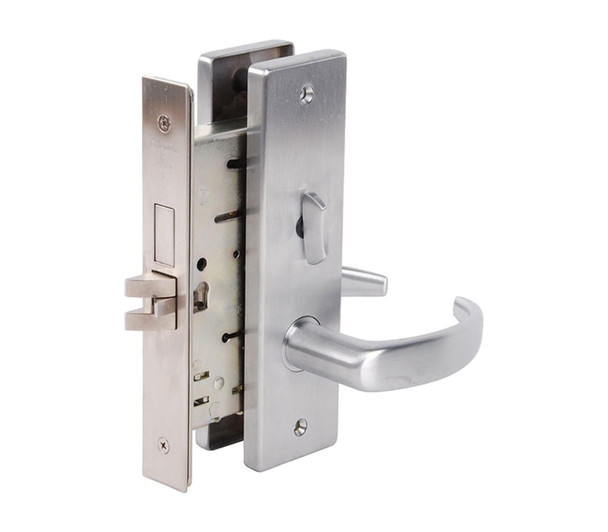

The Falcon MA371L is a commercial-grade mortise lock designed for offices, hospitals, educational facilities, and high-traffic environments. This durable lock combines security with reliability, featuring an interchangeable core (SFIC compatible) for fast re-keying and easy maintenance without removing the lock from the door.
The MA371L accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour standards. Right-hand handing ships standard; left-hand and field reversibility are available. Contact E.D. Locks' expert team at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and installation guidance from an authorized Falcon dealer.
Specifications
- Brand: Falcon
- Model: MA371L QN 626
- Type: Mortise Lock with Interchangeable Core
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5/6/7-pin standard; 6/7-pin I/C
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored front
- Handing: Right hand standard; left hand and field reversible optional
- Finishes: Satin Chrome (626)
- Electrified Options: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
