Description

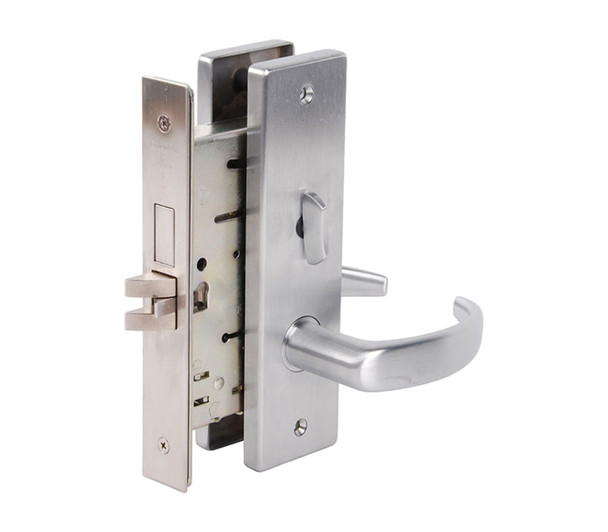

The Falcon MA371P QN 626 is a commercial mortise lock designed for offices, hospitals, educational facilities, and other high-traffic environments. This heavy-duty lock combines security with durability, featuring a mechanical anti-friction latch bolt and a 1-inch throw dead bolt with saw-resistant rollers. It handles constant daily use without compromising performance or reliability.
The MA371P accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and features an interchangeable core (SFIC compatible) for quick re-keying. Installation fits standard mortise applications with adjustable armored faceplates. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, electrified functions, and specifications. Contact sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Brand: Falcon
- Model: MA371P
- Finish: Satin Nickel (QN 626)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard, A keyway on I/C
- Faceplate: 1-1/4" x 8" brass or stainless steel
- ANSI/BHMA: Meets 156.13, Series 1000
- UL: 3 hour A label
- Electrified: Available 12 or 24 VDC
- Handing: Right hand standard, left hand optional, reversible
