Description

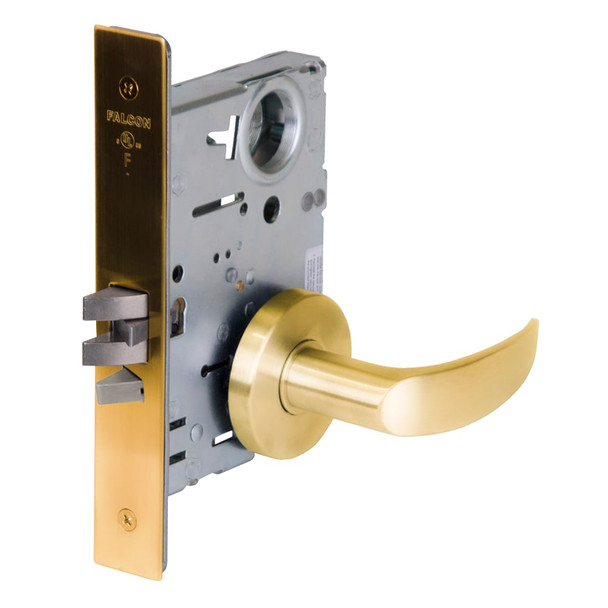

The Falcon MA381L AG 605 is a commercial mortise lock built for high-traffic offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock combines security with durability, featuring a two-piece stainless steel latch bolt, 1-inch dead bolt with saw-resistant rollers, and cold-formed steel construction. The interchangeable core design enables quick re-keying without removing the lock.
The MA381L accommodates door thicknesses from 1-3/8" to 2-1/2" with a standard 2-3/4" backset and is reversible for left or right hand installation. Compatible with SFIC products from other manufacturers, this lock meets UL 3-hour A label requirements. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, electrified functions, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA381L AG 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Keyway: "G" keyway standard ("A" standard on interchangeable core)
- Handing: Right hand standard, left hand optional, reversible in field
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Strike: Brass or stainless steel, meets ANSI A115.1
- Electrified: 12 or 24 VDC available
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
