Description

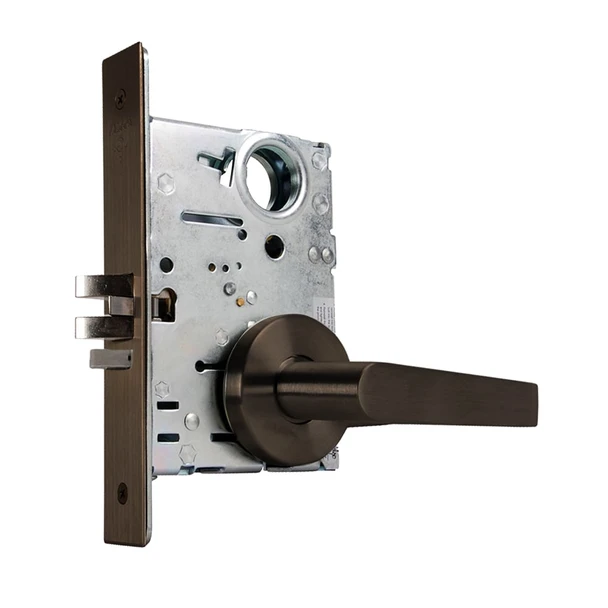

The Falcon MA381L DG 613 is a high-performance mortise lock engineered for demanding commercial environments including offices, hospitals, and educational facilities. This durable lock combines security with reliability, featuring an interchangeable core for quick re-keying and easy maintenance in retrofit applications.
Compatible with SFIC products from other manufacturers, this lock accommodates door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset. Right-hand handing is standard; left-hand and field-reversible options are available. As an authorized Allegion dealer, E.D. Locks provides expert guidance on keying, installation, and configuration. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Brand: Falcon
- Model: MA381L DG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Keyway: G keyway standard (A keyway on I/C cylinder)
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Handing: Right-hand standard, left-hand optional, field-reversible
- Electrified: 12 or 24 VDC available
- ANSI/BHMA: Series 1000 (156.13)
- UL Rating: 3-hour A label
