Description

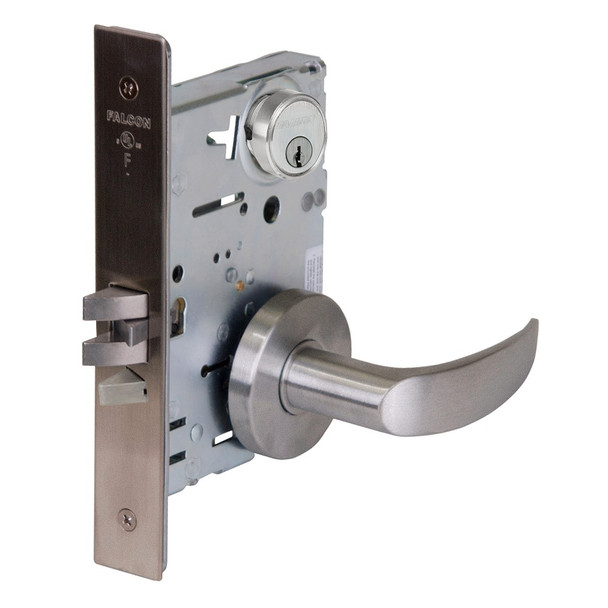

The Falcon MA381P is a heavy-duty mortise lock designed for commercial environments including offices, hospitals, and educational facilities. It combines security with reliability, built to withstand constant daily use without failure. The interchangeable core allows quick re-keying in the field, and it's compatible with SFIC products from other manufacturers.
This left-hand lock accommodates door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards. For expert assistance selecting the right configuration, keying options, or electrified variants, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Handing: Left hand (reversible in field)
- Latch Bolt: 3/4" projection, two-piece stainless steel
- Dead Bolt: 1" throw with saw-resistant rollers
- Case: Cold-formed steel, zinc dichromate plated, .090" thick
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin I/C
- Keyways: G keyway standard; A keyway on I/C cylinder
- Faceplate: 1-1/4" x 8" brass or stainless steel
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Electrified: 12 or 24 VDC available
