Description

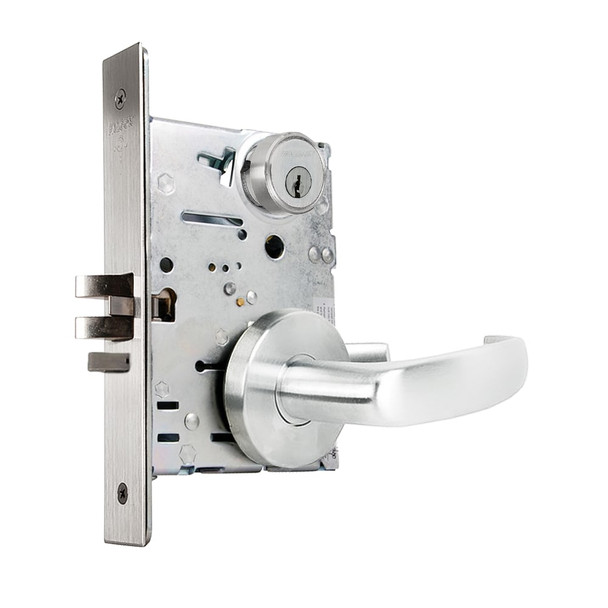

The Falcon MA381P mortise lock delivers commercial-grade security and durability for offices, hospitals, schools, and other demanding environments. Built tough to withstand constant use, this Series 1000 lock features a mechanical anti-friction latch bolt, a 1-inch dead bolt with saw-resistant rollers, and an interchangeable core for quick re-keying without removing the lock from the door.
The MA381P accommodates standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and accepts SFIC products from other manufacturers for maximum flexibility. As an authorized Falcon dealer, E.D. Locks offers expert support to ensure proper installation and keying. Contact our team at sales@edlocks.com or 1-877-207-6067 with any questions about compatibility or specifications.
Specifications
- Brand: Falcon (Allegion)
- Model: MA381P QG 625 RH
- Type: Mortise Lock with Interchangeable Core
- Handing: Right Hand (reversible in field)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5, 6, or 7-pin available (standard); 6 or 7-pin (interchangeable core)
- Keyway: G (standard cylinder); A (I/C cylinder)
- Finish: 625 (Bright Chrome)
- Faceplate: 1-1/4" x 8" brass or stainless steel, armored front
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Electrified: Available in 12 or 24 VDC
- Rating: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
- Keys: Two nickel silver keys included
