Description

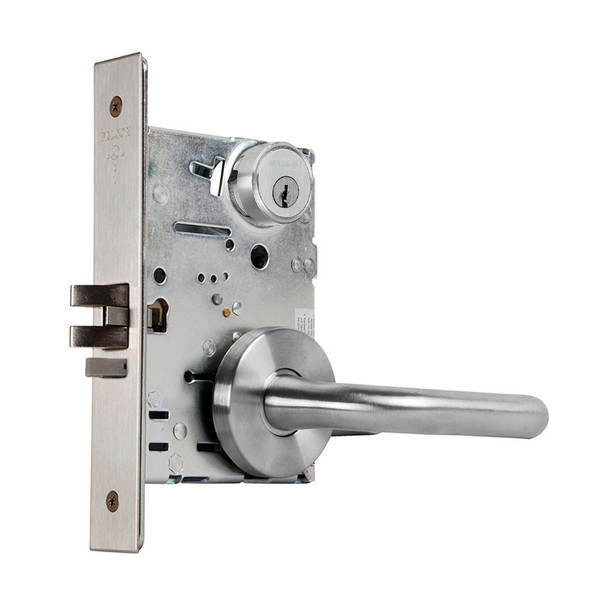

The Falcon MA381P mortise lock delivers high performance and dependability for commercial office, hospital, and education facilities. This heavy-duty lock features a two-piece stainless steel latch bolt with mechanical anti-friction design and a 1-inch throw dead bolt with saw-resistant rollers, built to withstand constant use without fail.
The MA381P accommodates door thickness 1-3/8" to 2-1/2" with 2-3/4" backset and supports SFIC interchangeable cores for quick re-keying. Right-hand handing is standard; left-hand and field-reversible options available. Meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for compatibility questions or keying guidance.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, .090" thick
- Latch Bolt: 3/4" projection, two-piece stainless steel, mechanical anti-friction
- Dead Bolt: 1" throw, stainless steel with hardened steel saw-resistant rollers
- Cylinders: Solid brass, 5/6/7-pin standard or interchangeable core (6/7-pin)
- Keyways: G keyway (standard), A keyway (I/C)
- Handing: Right-hand standard, left-hand optional, field-reversible
- Finishes: Brass or stainless steel faceplates and strike
- Electrified: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1
