Description

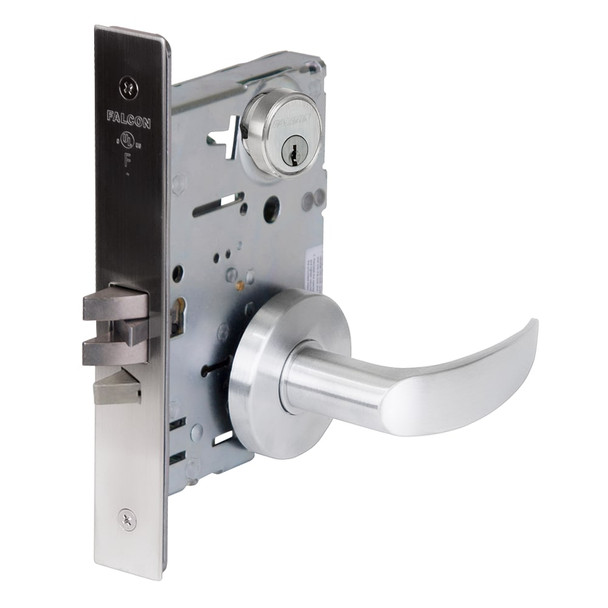

The Falcon MA411P AG 625 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. Featuring an interchangeable core (SFIC compatible), anti-friction latch bolt, and saw-resistant rollers, this lock combines security with easy re-keying and retrofit capability for demanding applications.
Fits standard door thickness 1-3/8" to 2-1/2" with 2-3/4" backset; right-hand standard, field-reversible. ANSI/BHMA Series 1000 rated with 3-hour UL A label. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, handing, and electrified function availability to ensure perfect fit for your project.
Specifications
- Brand: Falcon (Allegion)
- Model: MA411P AG 625
- Type: Mortise Lock, Interchangeable Core
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right-hand standard; left-hand optional; reversible in field
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Keyway: "A" (interchangeable core standard)
- Cylinders: 6 or 7-pin interchangeable core; solid brass
- Keys: Two nickel silver keys furnished
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Rating: ANSI/BHMA 156.13 Series 1000
- UL: 3-hour A label
- Electrified: 12 or 24 VDC available
