Description

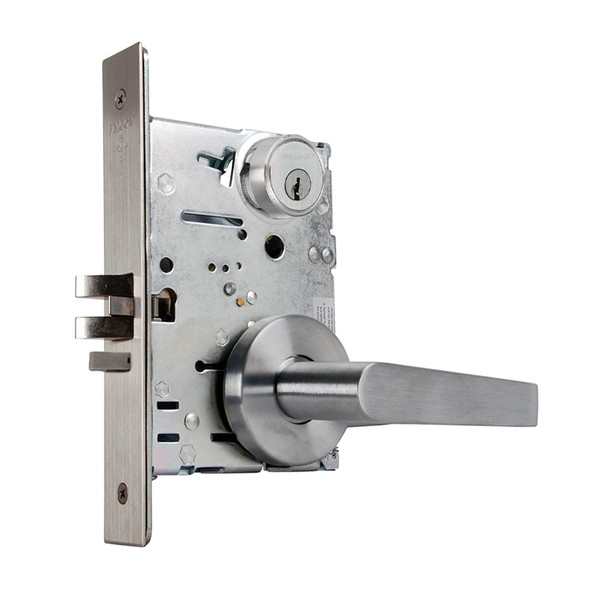

The Falcon MA411P is a heavy-duty mortise lock engineered for offices, hospitals, schools, and commercial facilities requiring reliable daily-use security. Its two-piece stainless steel latch and saw-resistant roller bolt deliver dependable performance, while the interchangeable core allows quick re-keying without removing the lock from the door.
Compatible with standard 1-3/8" to 2-1/2" door thickness and SFIC products from other manufacturers, this lock installs in 2-3/4" backset applications. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, keying options, and electrified configurations. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA411P DG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on interchangeable core
- Keyways: G keyway standard; A keyway on I/C cylinder
- Handing: Right hand standard; left hand optional, reversible in field
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL: 3 hour A label
