Description

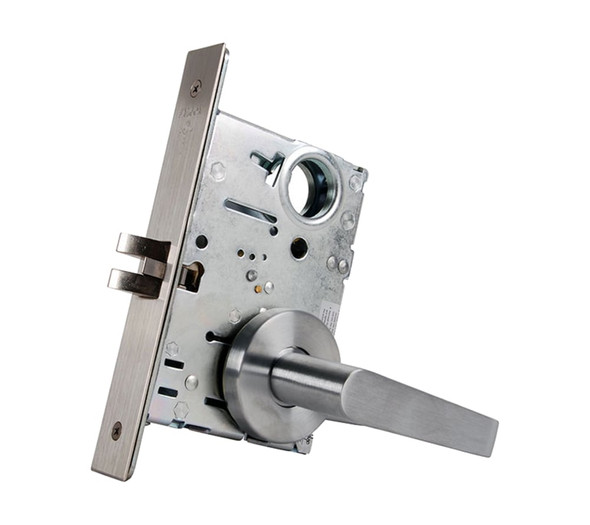

The Falcon MA431P DG 626 is a commercial mortise lock built for high-traffic office, hospital, and education environments. Its interchangeable SFIC core enables quick re-keying without removing the lock, while the two-piece stainless steel latch and hardened steel rollers provide durability against constant use and tampering.
This right-hand lock fits standard doors 1-3/8" to 2-1/2" thick with a 2-3/4" backset. Backed by Allegion and ANSI/BHMA Series 1000 certification with a 3-hour UL label, it's designed for serious security. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for keying options, left-hand conversion, or electrified configurations.
Specifications
- Brand: Falcon
- Model: MA431P DG 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with hardened steel rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G keyway standard, A keyway on I/C cylinder
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified: Available 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
- Strike: Meets ANSI A115.1, non-handed
