Description

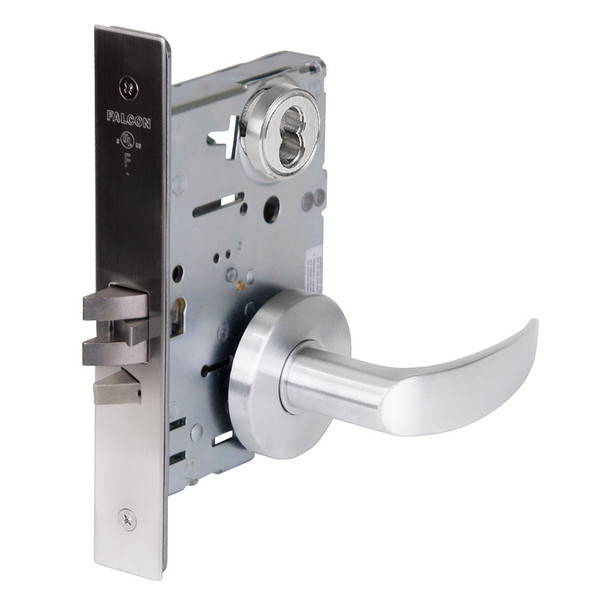

The Falcon MA441B AG 625 is a commercial-grade mortise lock engineered for offices, hospitals, and educational facilities requiring reliable security and durability. Built with cold-formed steel construction and a two-piece stainless steel latch bolt, this lock withstands constant use and meets ANSI/BHMA Series 1000 standards, making it ideal for high-traffic environments.
The MA441B features an interchangeable core (SFIC compatible) for fast re-keying and accommodates door thicknesses from 1-3/8" to 2-1/2". Available in 2-3/4" backset with right-hand standard (left-hand optional) and reversible in the field. As an authorized Falcon dealer, E.D. Locks offers expert guidance on specification, keying options, and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon
- Model: MA441B AG 625
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass; 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard cylinder; A keyway IC cylinder
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with two 13/16" diameter hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, meets ANSI A115.1
- Electrified Functions: Available in 12 or 24 VDC
- ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000
- UL Rating: 3 hour A label
- Keys Furnished: Two nickel silver keys standard
