Description

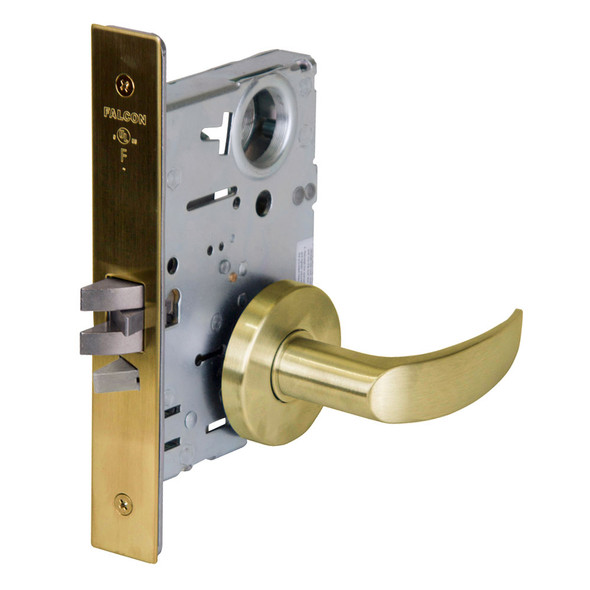

The Falcon MA441L AG 613 is a heavy-duty mortise lock designed for commercial environments including offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock delivers dependable security and withstands constant daily use. Its interchangeable core (SFIC-compatible) enables fast re-keying without removing the lock from the door.
Compatible with standard door thicknesses from 1-3/8" to 2-1/2", the MA441L accommodates 2-3/4" backset only and ships right-hand standard (left-hand optional, field-reversible). Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, electrified functions, and finish selection to match your project requirements.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: "G" standard (standard cylinder), "A" standard (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection, mechanical anti-friction
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored front
- Hubs: Hardened steel
- ANSI/BHMA: Meets 156.13, Series 1000
- UL: 3 hour A label
- Electrified: Available in 12 or 24 VDC
- Handing: Right standard, left optional, field-reversible
