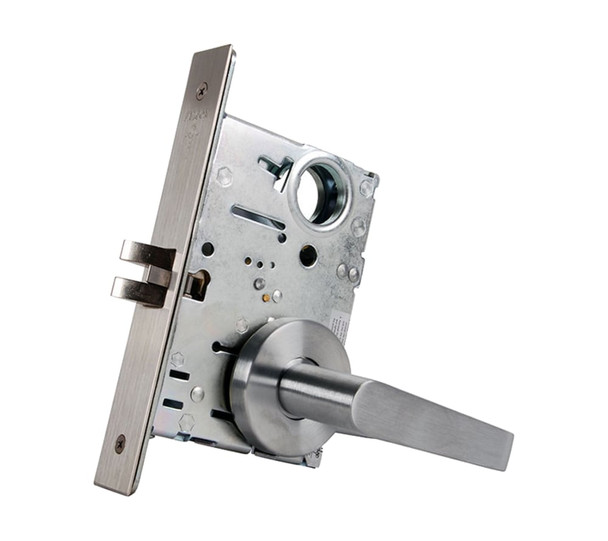

The Falcon MA451L is a commercial mortise lock built for offices, hospitals, and educational facilities that demand reliable security and durability. Featuring a mechanical anti-friction latch bolt and a 1 inch throw dead bolt with saw-resistant rollers, this Series 1000 lock handles constant use without failure and simplifies maintenance with an SFIC interchangeable core for quick re-keying.
The MA451L fits standard door thicknesses from 1-3/8 inch to 2-1/2 inch and is field-reversible for both right and left hand installation. As an authorized Falcon dealer, E.D. Locks offers expert guidance on cylinder options, keyway selection, and electrified configurations. Contact our sales team at 1-877-207-6067 or sales@edlocks.com for compatibility verification and keying assistance.
Specifications
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, field reversible
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard cylinder; A keyway interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with hardened steel rollers
- Faceplates: 1-1/4 inch x 8 inch brass or stainless steel
- Strike: Brass or stainless steel, non-handed
- Electrified: 12 or 24 VDC available
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
