Description

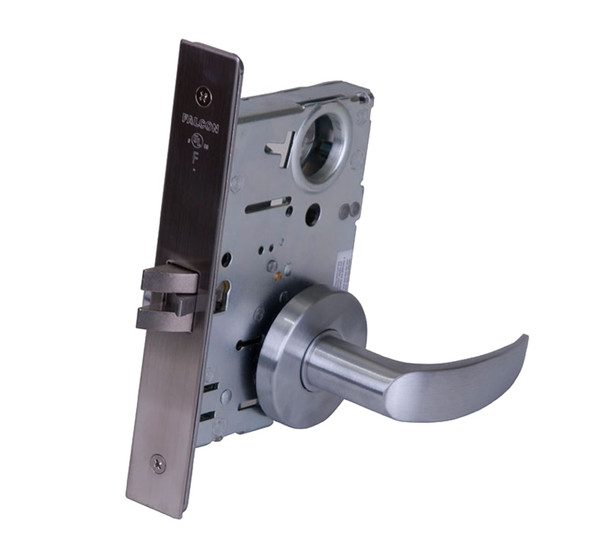

The Falcon MA521B AN 626 is a heavy-duty mortise lock engineered for high-traffic commercial environments including offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock combines security with dependability, featuring a two-piece stainless steel latch bolt, anti-friction design, and a 1-inch deadbolt with saw-resistant rollers to withstand constant daily use.
The MA521B accommodates standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and supports interchangeable cores (SFIC-compatible) for quick field re-keying without removing the lock body. UL-listed for 3-hour fire-rated applications. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for specification details, finish options, electrification availability, or handing assistance.
Specifications
- Brand: Falcon
- Model: MA521B AN 626
- Type: Mortise Lock
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass; 5, 6, or 7-pin standard; 6 or 7-pin IC
- Keyways: G keyway (standard cylinder); A keyway (IC cylinder)
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Deadbolt: 1" throw stainless steel with two 13/16" hardened steel, free-turning, saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified Functions: 12 or 24 VDC available
- ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000
- UL Rating: 3-hour A label
- Keys: Two nickel silver keys standard
- Optional: Lead wrapping, alternative keyways, left hand handing
