Description

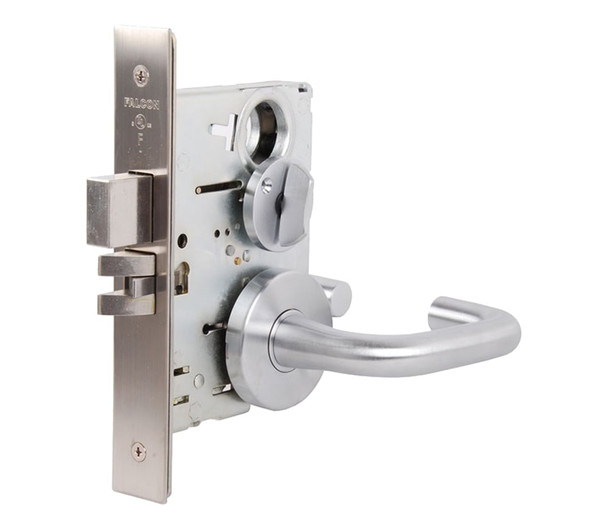

The Falcon MA521B mortise lock is a high-performance, affordable solution for commercial office, hospital, education, and institutional environments. Built tough for constant daily use, this lock combines security with reliability and features an interchangeable core (SFIC compatible) that enables quick field re-keying without removing the lock from the door.
The MA521B fits standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour standards. Right-hand and left-hand versions are available and field-reversible. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, finishes, handing, and electrified options to ensure the perfect fit for your project.
Specifications
- Brand: Falcon (Allegion)
- Model: MA521B SG 625
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" adjustable for door bevel, brass or stainless steel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Handing: Right-hand standard, left-hand optional, field-reversible
- Electrified: Available 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Keys: Two nickel silver keys furnished standard
