Description

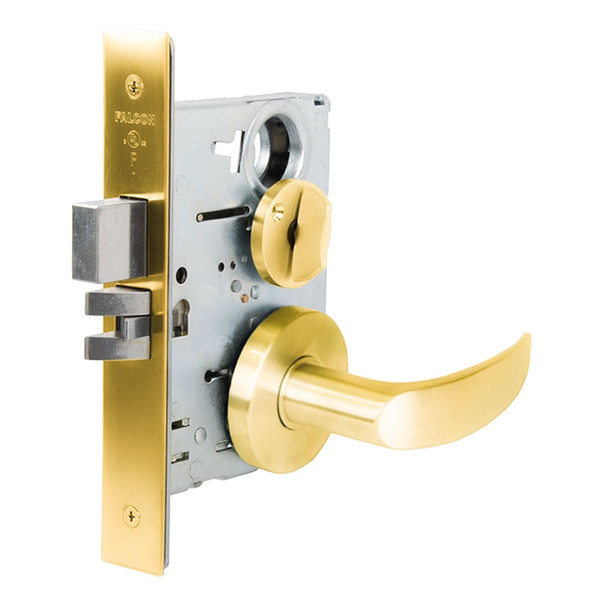

The Falcon MA521CP6 is a heavy-duty mortise lock built for commercial offices, hospitals, and educational facilities that demand reliable security and durability. This ANSI/BHMA Series 1000 lock features a stainless steel latch and deadbolt with saw-resistant rollers, cold-formed steel case, and interchangeable core (SFIC) compatibility for quick re-keying without removing the lock body.
Fits standard 1-3/8" to 2-1/2" door thickness with 2-3/4" backset. Ships with two nickel silver keys in "A" keyway; optional 5, 6, or 7-pin cylinders available. Right-hand standard, reversible in field. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying, finish selection, and electrified options. Contact sales@edlocks.com or 1-877-207-6067 for compatibility questions or custom configurations.
Specifications
- Brand: Falcon
- Model: MA521CP6
- Finish: 605 (Polished Brass)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Latch Projection: 3/4"
- Deadbolt Throw: 1"
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on interchangeable core
- Keyway: "G" (standard cylinder) or "A" (I/C cylinder)
- Keys Furnished: Two nickel silver keys
- Handing: Right-hand standard; left-hand optional; reversible in field
- ANSI/BHMA Rating: 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified: Available 12 or 24 VDC
